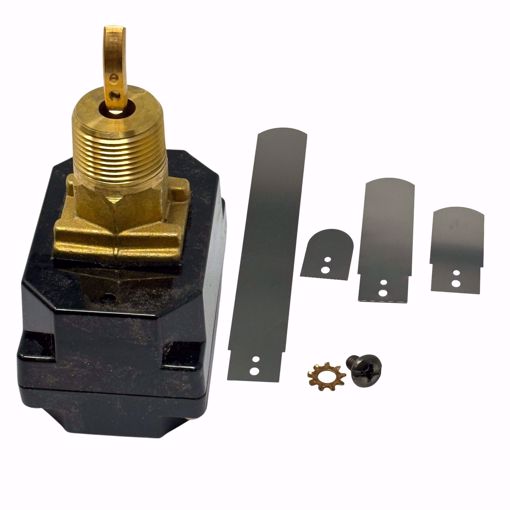

JOHNSON CONTROLS SPDT 1 IN. FLOW SWITCH NEMA 4

Manufacturer: Johnson Controls

F261MAH-V01C JOHNSON CONTROLS SPDT 1 IN. FLOW SWITCH NEMA 4 - Connection Size 1" - Connection Type NPT - Flow Rate Range 2.5 gpm – 760 gpm - Media Temp. Range -20 °F to 250 °F - Switch Type SPDT - NEMA 4 - Ambient Temperature Range -40 to 140 F - 50/60Hz - 1 HP (MAX) - Contact Rating (AC) 16 A @ 120V (Full Load) - Paddles 1", 2", 3", and 6" Stainless Steel Paddles Included Features and Benefits - Type 4 (NEMA) enclosure allows use in indoor or outdoor applications. - Viton diaphragms allow use in fluid lines carrying chlorinated water, treated water, or other nonhazardous fluids - Maximum fluid pressure of 290 psig (20 bar) permits use in a wide range of pressure flow conditions. F261 Series Standard Flow Switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 inch trade size. The F261 Series Flow Switches respond to fluid flow in lines carrying water, ethylene glycol, or other nonhazardous fluids. These models also work in applications with swimming pool water and lubricating oils.

SKU: JOHNSON:F261MAH-V01C

Product Availability: 2

$258.17

This product must be purchased in increments of 1

Qty:

i h

F261MAH-V01C JOHNSON CONTROLS SPDT 1 IN. FLOW SWITCH NEMA 4

- Connection Size 1"
- Connection Type NPT
- Flow Rate Range 2.5 gpm – 760 gpm
- Media Temp. Range -20 °F to 250 °F
- Switch Type SPDT
- NEMA 4
- Ambient Temperature Range -40 to 140 F
- 50/60Hz
- 1 HP (MAX)
- Contact Rating (AC) 16 A @ 120V (Full Load)
- Paddles 1", 2", 3", and 6" Stainless Steel Paddles Included

Features and Benefits
- Type 4 (NEMA) enclosure allows use in indoor or outdoor applications.
- Viton diaphragms allow use in fluid lines carrying chlorinated water, treated water, or other nonhazardous fluids
- Maximum fluid pressure of 290 psig (20 bar) permits use in a wide range of pressure flow conditions.

F261 Series Standard Flow Switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 inch trade size.

The F261 Series Flow Switches respond to fluid flow in lines carrying water, ethylene glycol, or other nonhazardous fluids. These models also work in applications with swimming pool water and lubricating oils.
