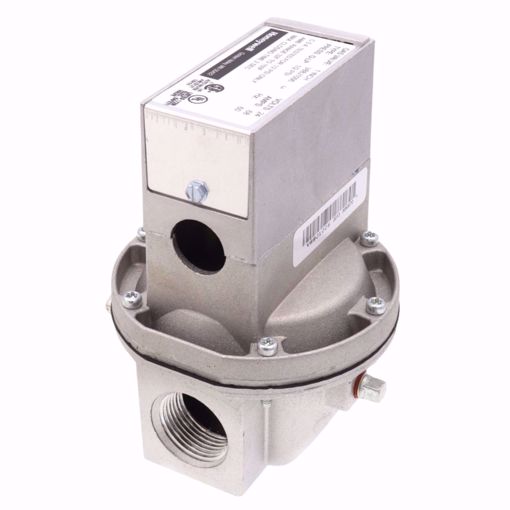

1 INCH GAS VALVE 24 VOLT

Manufacturer: Honeywell

- 2 Way Normally Closed - 1" Pipe Size - 24V - 1" Straight Through Normally Closed - High Temperature Diaphragm Gas Valve - Used with natural gas, LP or manufactured gas - 1/8" Pilot Tapping - 5 second max opening time - 2 Second max closing time - Aluminum body - 1021 cfh - 1 pound max pressure Features - Line voltage, 2-wire thermostat or controller used with a V48; V88 used with 24V thermostat. - Valves provide slow opening and fast closing. - Two second maximum closing time. - V48J, V88J rated for 150°F (66°C) ambient temperature. - V48F rated for 5 psi (lb. per sq. in.) (34.5 kPa). V48A and V88A rated for either 1/2 or 1 psi (3.4 or 6.9 kPa), depending on model. V48J and V88J rated for 1 psi (6.9 kPa). - One model for natural and LP gases. - Wide range of sizes and capacities - Firm closing; diaphragm is both weight and spring loaded. - Valve closes on power failure; recommended for final shutoff service. - Adjustable or fixed bleed orifices available for installation by OEM. - Valve position indicator on 1-1/4 in. V48A2227 and 2 in. V48F1103 Valves. The V48 and V88 are solenoid-operated diaphragm valves suitable for LP (Liquefied Petroleum), natural, and manufactured gases. They are normally used on atmospheric boilers, commercial water heaters, and rooftop heaters.

SKU: HONEYWELL:V88J1006

Product Availability: Out of stock

$377.43

This product must be purchased in increments of 1

Qty:

i h

- 2 Way Normally Closed
- 1" Pipe Size
- 24V
- 1" Straight Through Normally Closed
- High Temperature Diaphragm Gas Valve
- Used with natural gas, LP or manufactured gas
- 1/8" Pilot Tapping
- 5 second max opening time
- 2 Second max closing time
- Aluminum body
- 1021 cfh
- 1 pound max pressure

Features
- Line voltage, 2-wire thermostat or controller used with a V48; V88 used with 24V thermostat.
- Valves provide slow opening and fast closing.
- Two second maximum closing time.
- V48J, V88J rated for 150°F (66°C) ambient temperature.
- V48F rated for 5 psi (lb. per sq. in.) (34.5 kPa). V48A and V88A rated for either 1/2 or 1 psi (3.4 or 6.9 kPa), depending on model. V48J and V88J rated for 1 psi (6.9 kPa).
- One model for natural and LP gases.
- Wide range of sizes and capacities
- Firm closing; diaphragm is both weight and spring loaded.
- Valve closes on power failure; recommended for final shutoff service.
- Adjustable or fixed bleed orifices available for installation by OEM.
- Valve position indicator on 1-1/4 in. V48A2227 and 2 in. V48F1103 Valves.

The V48 and V88 are solenoid-operated diaphragm valves suitable for LP (Liquefied Petroleum), natural, and manufactured gases. They are normally used on atmospheric
boilers, commercial water heaters, and rooftop heaters.

Products specifications

Manufacturer	Honeywell
