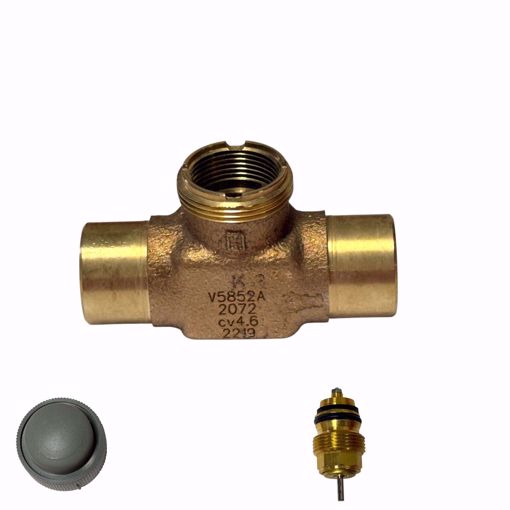

CARTRIDGE GLOBE VALVE 2-WAY SWEAT BRASS BODY. 3

Manufacturer: Honeywell

Ambient Temperature Range 36 F to 230 F Two-Way 3/4" 4.6 Cv Controlled Fluid Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels. Brass body Stem Travel 1/4" Features - Long stroke allows wider range of control. - Soft valve seat provides low leakage rate. - Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool. - Brass body and Stainless Steel stem. - Threaded plastic cover/manual handle allows manual operation. - Easily installed in areas where space is limited. Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units, small re-heaters and re-coolers in temperature controllers. Use with M6410 and M7410 Actuator. 1/2" & 3/4" size fit with the M6435 M7435, and the MP958 Actuators.

SKU: HONEYWELL:V5852A2072

Product Availability: 6

$70.37

This product must be purchased in increments of 1

Qty:

i h

Ambient Temperature Range 36 F to 230 F
Two-Way
3/4"
4.6 Cv
Controlled Fluid Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
Brass body
Stem Travel 1/4"

Features
- Long stroke allows wider range of control.
- Soft valve seat provides low leakage rate.
- Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool.
- Brass body and Stainless Steel stem.
- Threaded plastic cover/manual handle allows manual operation.
- Easily installed in areas where space is limited.

Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units, small re-heaters and re-coolers in temperature controllers. Use with M6410 and M7410 Actuator. 1/2" & 3/4" size fit with the M6435 M7435, and the MP958 Actuators.

Products specifications

Manufacturer	Honeywell
