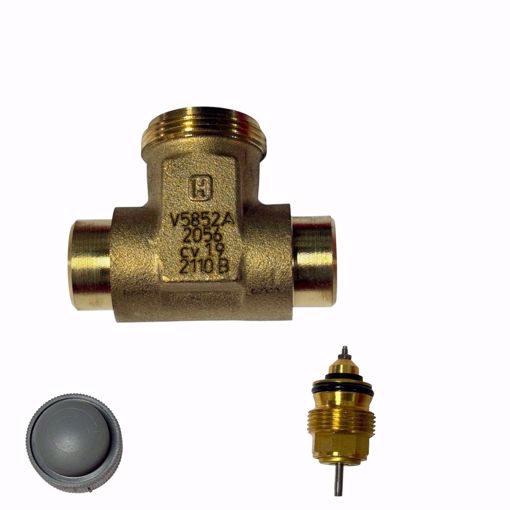

V5852A2056 HONEYWELL CARTRIDGE GLOBE VALVE 2-WAY SWEAT BRASS BODY. 1/2"
- Max Safe Operating Pressure 235 PSI
- Max Safe Operating Pressure 1620 kPa
- Used WithM6410A1029; M6435A1004; M7410F1000; M7435F1001; MP958
- Ambient Temp Range 36 F to 230 F
- Connection Type Sweat (Female)
- Body Pattern Two-Way
- Pipe Size 1/2"
- Max Differential Pressure Ratings (Closed-Off) 174 PSI
- Max Differential Pressure Ratings (Closed-Off) 1200 kPa
- 1.9 Cv
- 1.6 kvs
- Controlled Fluid Chilled or hot water with up to 50 % Glycol. Not for used with steam or fuels
- Brass Body
- Stem Travel 1/4"
Features
- Long stroke allows wider range of control.
- Soft valve seat provides low leakage rate.
- Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an - insert replacement tool.
- Brass body and Stainless Steel stem.
- Threaded plastic cover/manual handle allows manual operation.
- Easily installed in areas where space is limited.
Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units, small re-heaters and re-coolers in temperature controllers. Use with M6410 and M7410 Actuator. 1/2" & 3/4" size fit with the M6435 M7435, and the MP958 Actuators.
