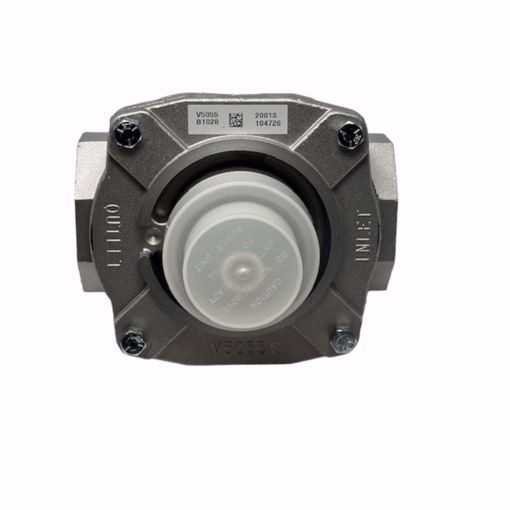

1-1/2 GAS VALVE BODY FOR USE WITH V405540629055
1-1/2 GAS VALVE BODY FOR USE WITH V405540629055
- Capacity (CFH): 1717
- Temperature Range: -40°F to 150°F
- Used With: V9055 Series, V4055 Series, V4062 Series
- Fuel Type: Natural Gas & Propane
- Maximum Temperature 150 F
- 1-1/2" Pipe Size
FEATURES
• Used with natural or liquefied petroleum (LP) gases.
• V5055 normally closed valves are rated for final shutoff service (safety shutoff).
• V5055B Valve has a characterized guide and in combination with the V4055, V4062, and V9055 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively.
• Most models have 1/4 inch upstream and downstream
tap and plug. BSP-PL thread models have 1/4 inch upstream tap and plug.
• Valve body rating of 75 psi (5.2 bar).
• Yellow SHUT indicator attached to the valve stem provides an indication of the valve closed position.
• Unpainted, die-cast aluminum body
The V5055 Gas Valves are used with the V4055, V4062, and V9055 Fluid Power Actuators to control gas flow to commercial and industrial burners.
