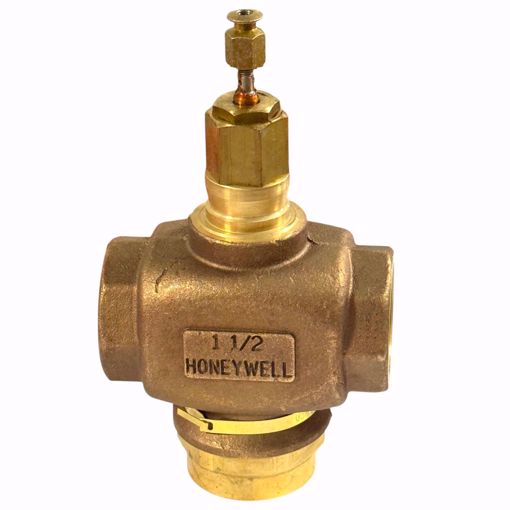

HONEYWELL 1-1/2 3 WAY MIXING VALVE

Manufacturer: Honeywell

V5013N1089 HONEYWELL 1-1/2 3 WAY MIXING VALVE - Body Pattern: 3-Way - Connection Method: Threaded - Brass Body - Temp Range 36 to 248 F - 1-1/2 Pipe Size - Female Connection Type - 29.3 Cv Flow Capacity - Max Pressure 240 PSI Features - Red brass body with NPT-threaded connections. - Stainless steel stem and brass plug. - Low seat leakage rate (≤0.05 percent of Cv). - Spring-loaded, self-adjusting packing. - 50:1 rangeability per VDI/VDE 2173. - Constant total flow throughout full stem travel. - Accurate positioning to ensure state of the art temperature control. - Sizes range from 1/2 in. to 2 in. - Suitable for pneumatic or electric/electronic actuation. - Repack and rebuild kits available for field servicing. The V5013N is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used for mixing service to direct flow from one of two inlets to a common outlet in two-position or modulating control systems.

SKU: HONEYWELL:V5013N1089

Product Availability: Out of stock

$378.37

This product must be purchased in increments of 1

Qty:

i h

V5013N1089 HONEYWELL 1-1/2 3 WAY MIXING VALVE

- Body Pattern: 3-Way
- Connection Method: Threaded
- Brass Body
- Temp Range 36 to 248 F
- 1-1/2 Pipe Size
- Female Connection Type
- 29.3 Cv Flow Capacity
- Max Pressure 240 PSI

Features
- Red brass body with NPT-threaded connections.
- Stainless steel stem and brass plug.
- Low seat leakage rate (≤0.05 percent of Cv).
- Spring-loaded, self-adjusting packing.
- 50:1 rangeability per VDI/VDE 2173.
- Constant total flow throughout full stem travel.
- Accurate positioning to ensure state of the art temperature control.
- Sizes range from 1/2 in. to 2 in.
- Suitable for pneumatic or electric/electronic actuation.
- Repack and rebuild kits available for field servicing.

The V5013N is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used for mixing service to direct flow from one of two inlets to a common outlet in two-position or modulating control systems.

Products specifications

Manufacturer	Honeywell
