120/60; 26 SEC OPNG TIME W/DAMPER SHAFT.

Manufacturer: Honeywell

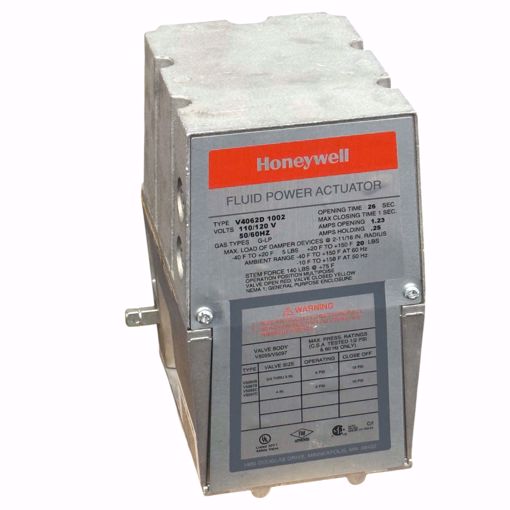

V4062D1002 HONEYWELL 120/60; 26 SEC OPNG TIME W/DAMPER SHAFT. - Type V4062D1002 - 110/120V - 50/60Hz - Opening Time 26 Sec - Max Closing Time 1 Sec - Amps Opening 1.23 - Amps Holding .25 - Max load of damper devices @ 2-11/16" Radius - Temp Range -40 F to 20 F - Stem Force 140 lbs @ 75 F - Operation Position Multiposie - Valve Open Red - Valve Closed Yellow - Nema 1 - General Purpose Enclosure - Material Die - Cast Aluminum Ambient Range - -40 to 150 F @ 60Hz - -10 to 158 F @ 50 Hz Features - Provide final safety shutoff service when used with V5055 or V5097 gas valve. - One-second maximum closing time. - Continuously displays the valve position with a red indicator when open and a yellow indicator when closed. - Mount in any position directly to valve bonnet with three setscrews. - Provide final safety shutoff service when used with V5055 or V5097 Gas Valves. Includes damper shaft. - Includes Proof of Closure Auxiliary Switch. Use with V5055 or V5097 Gas Valves to control gas supply for commercial and industrial burners. Valve opens to low fire position when power is applied; valve opens all the way on demand.

SKU: HONEYWELL:V4062D1002

Product Availability: 1

$1,094.12

This product must be purchased in increments of 1

Qty:

i h

V4062D1002 HONEYWELL 120/60; 26 SEC OPNG TIME W/DAMPER SHAFT.

- Type V4062D1002
- 110/120V
- 50/60Hz
- Opening Time 26 Sec
- Max Closing Time 1 Sec
- Amps Opening 1.23
- Amps Holding .25
- Max load of damper devices @ 2-11/16" Radius
- Temp Range -40 F to 20 F
- Stem Force 140 lbs @ 75 F
- Operation Position Multiposie
- Valve Open Red
- Valve Closed Yellow
- Nema 1
- General Purpose Enclosure
- Material Die - Cast Aluminum

Ambient Range
- -40 to 150 F @ 60Hz
- -10 to 158 F @ 50 Hz

Features
- Provide final safety shutoff service when used with V5055 or V5097 gas valve.
- One-second maximum closing time.
- Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
- Mount in any position directly to valve bonnet with three setscrews.
- Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
Includes damper shaft.
- Includes Proof of Closure Auxiliary Switch.

Use with V5055 or V5097 Gas Valves to control gas supply for commercial and industrial burners. Valve opens to low fire position when power is applied; valve opens all the way on demand.

Products specifications

Manufacturer	Honeywell
