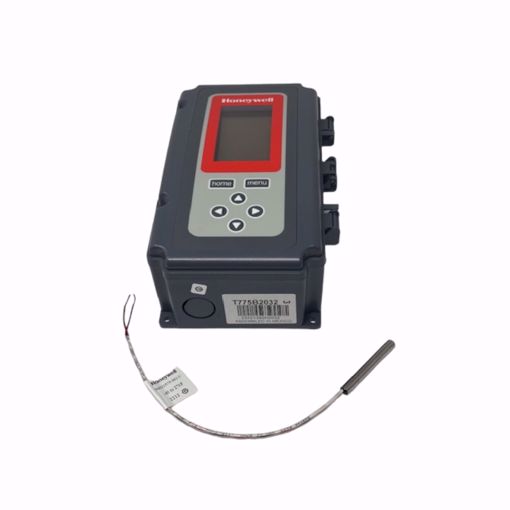

ELECTRONIC TEMPERATURE CONTROLLER WITH 2 TEMP INP

- 50/60hz - Operating Temperature Range (F)Ambient-- -40 F to 140 F @ 60 Hz; -40 F to 125 F @ 50 Hz - Relay Outputs2 SPDT - Sensor Inputs 2 - Sensor Element 1097 ohms PTC at 77 F (25 C) - Sensors Included 50021579-001 - Maximum distance to sensor (ft) Up to 1,000 ft - Bulb Size (in.)1/4 in. diameter x 2 in. long - Accuracy (F) ±1 F at 77 F - Throttling Range (F) 1 F to 150 F - Differential Temperature (F)1 F to 150 F - Voltage: 24 Vac or 120/240 Vac - Replaces: T775A1019, T775B1000 Relay Contact Ratings 24 Vac-- 10.0A resistive; 120 Vac-- 1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty; 240 Vac-- 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty Features - Easy-To-Use Graphical Interface Operating the new T775 is easy and the intuitive programming will save you time on every job. Each model includes a keypad lockout. - Protect equipment from freezing or overheating on models with the modulating high or low limit control option - Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID) - Eliminate the need for a separate time delay device and protect equipment with the minimum off time option. The T775 electronic stand-alone controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads. On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
