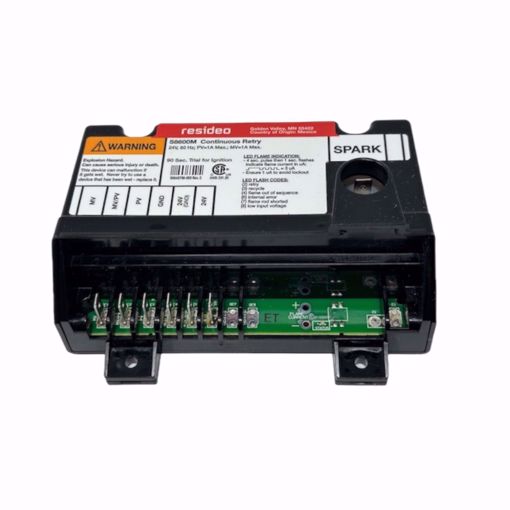

IGNITION MODULE (HONEYWELL S8600M3001)

Manufacturer: Honeywell

Ignition Trials To Lockout Continuous Retry Maximum Valve Load 1 A Pilot, 1 A Main @ 24 V AC Ignition Between Trail Time 5 minute delay after failed trial for ignition Ignition Trial Time 90 sec Pre-Purge None Flame Failure Response Time 2 Sec maximum Igniter-Sensor Rod Single 24V 60Hz These ignition modules provide ignition sequence, flame monitoring, and safety shutoff for intermittent pilot central furnaces and heating appliances

SKU: HONEYWELL:S8600M3001

Product Availability: 1

$96.60

This product must be purchased in increments of 1

Qty:

i h

Ignition Trials To Lockout Continuous Retry
Maximum Valve Load 1 A Pilot, 1 A Main @ 24 V AC
Ignition Between Trail Time 5 minute delay after failed trial for ignition
Ignition Trial Time 90 sec
Pre-Purge None
Flame Failure Response Time 2 Sec maximum
Igniter-Sensor Rod Single
24V
60Hz

These ignition modules provide ignition sequence, flame monitoring, and safety shutoff for intermittent pilot central furnaces and heating appliances

Products specifications

Manufacturer	Honeywell
