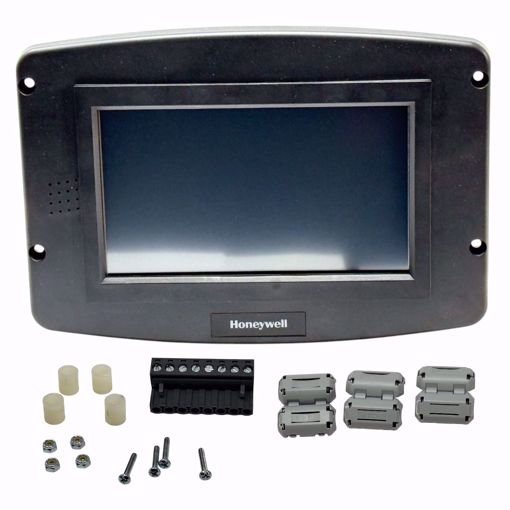

CONTROLINKS DISPLAY MODULE

- Hazmat Information: UN 3091, LITHIUM METAL BATTERIES PACKED WITH EQUIPMENT, 9 - Application: Interface Display - Temperature Range (F): Ambient - 14 F to 122 F - Temperature Range (C): Ambient - -10 C to 50 C - Used With: R7999 - Approvals, Underwriters Laboratories Inc.Component Listed - Operating Humidity Range (% RH): 85% RH continuous, non-condensing - Voltage: 24 Vac - Shipping and Storage Temperature Range (F): -13 F to 155 F The S7999D Combustion System Operator Interface (OI) reduces burner/boiler setup time by allowing the user to create a fuel/air modulation curve (profile) for ControLinks (Fuel/Air Ratio Control) that allows for safe and efficient operation at all points along the modulation curve. The OI uses a wizard like process to assist the user through the commissioning process. The S7999D can be used on systems with one or two fuels and on systems with or without flue gas recirculation (FGR). The S7999D has two RS485 com ports that can be configured to provide: • Fuel/Air Ratio Control commissioning and monitoring • One or more boiler/burner systems monitoring (up to 99 burner/burner systems). Each burner control, Fuel/Air Ratio Control, and Expanded Annunciator present on each burner system can be viewed individually to determine its status. • Local display to a System Monitor • System Monitor to one or more Local displays • Gateway for ModBus Master (BAS) The S7999D is a multiple language OI; English and Spanish selectable. The S7999D can be flush mount or behind mounted into a panel cutout. Wiring connections to the S7999D are through a removable 8-pin wiring connector. The S7999D also has a USB port that can be used for: • Transfer screenshot images • Transfer Trend Analysis Reports • To upload: (1) System OI application software revisions (when provided by Honeywell) (2) Home page background image (3) Home page logo (4) Screen saver image This document provides installation and initial setup instructions. Other applicable publications are: • 66-1200 Combustion System Operator Interface Installation Instructions
