- Terminal Ratings: Power: 13 Vdc peak full wave rectified. Earth Ground.
- Operating Temperature: 0°F (-18°C) to +140°F (+60°C).
- Humidity: 85% relative humidity continuous, noncondensing.

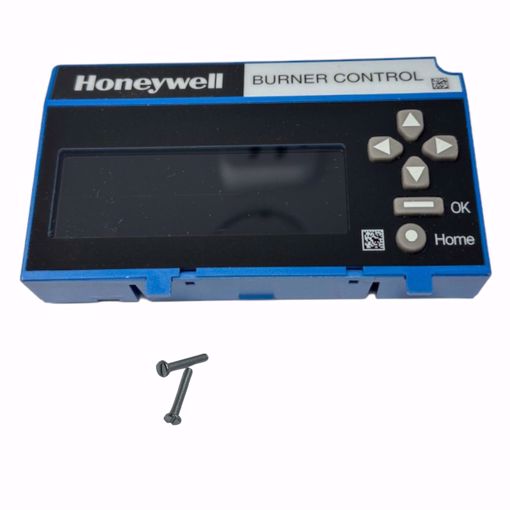

The S7800A2142 Keyboard Display Module is the newest and most
intuitive way to interact with any 7800 Series Flame Relay module. The new display is packed full of features and best of all – it’s compatible with all 7800 SERIES burner controls.
New Display. New Possibilities.
The S7800A2142 Keyboard Display Module is the newest display offering in the line of 7800 SERIES microprocessor based burner controls for gas, oil, coal or combination fuel single burner applications. With the new Keyboard Display Module, diagnostics and troubleshooting are easier making servicing 7800 SERIES controls a breeze!
Plug & Play
The new S7800A2142 is compatible with all new or installed Honeywell 7800 SERIES burner controls. Simply remove the old display and add the new!* No additional set up is required, saving time and money. The new display is so intuitive and easy to use that programming of the display can be done
when it is mounted on a 7800 SERIES Relay Module or when connected through a power source.
Enhanced Programming Capabilities
The new display offers many pass code protected enhancements including:
• Valve Proving Feature - Allows for programming the Valve Proving Control feature and timing.
• Post Purge Feature - Allows for programming the post purge time.
• Expanded Annunciator Set Up - Allows for naming the S7830 Expanded Annunciator terminals to match your system’s drawings.
