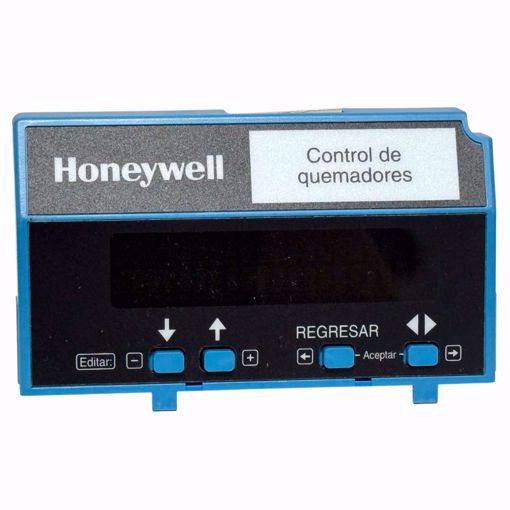

S7800A1167 HONEYWELL KEYBOARD DISPLAY-SPANISH WITH VALVE PROVING POSTPURGE
Specifications
Electrical Ratings
- Voltage and Frequency: 13 Vdc peak full wave rectified (+20%/-15%).
- Power Dissipation: 7W maximum.
- VA consumption: 2 VA maximum
Terminal Ratings
- Power: 13 Vdc peak full wave rectified
Environmental Ratings
Ambient Temperature Ranges
- Operating: -40°F (-40°C) to +140°F (+60°C)
- Storage: -60°F (-51°C) to +150°F (+66°C)
- Humidity: 85% relative humidity continuous, non-condensing
Display: 40 character (2 rows by 20 columns).
Features
- Application Flexibility
Communication Interface Capability
- Through Q7700 Network Interface Unit
- Through 203541 Connector on the Modbus Data Highway
- First-out annunciation and system diagnostics provided by a 2-row by 20 -column display
- First-out expanded annunciation with 24 limit and interlock Light Emitting Diodes (LEDS)
- Remote Reset
- Burner Controller Data ( Sequence Status/Time, Lockout/Alam Status, Total Cycle of Operating/Hours, Fault History, ETC)
The S7800A1167 KDM offers the following technical advancements to the 7800 SERIES devices:
- Compatible with installed Honeywell 7800 SERIES system
- When used with the new 7800 SERIES with Valve Proving Feature, the KDM allows for programming the Valve Proving Control feature and timing (Pass Code protected feature).
- Allows for naming the S7830 Expanded Annunciator terminals to match your system drawings. (Displayed message only.) (Pass Code protected feature.)
- A three screen two-row by twenty-column readout set of" Call Service" (Business Card) alpha/numeric direction scan be displayed instead of the standard lockout display message. (Pass Code protected feature). This "business card" can be cloned to other displays to save setup time.
- Enable ModBus Communication feature.
The S7800A1167 Keyboard Display Module (KDM) provides current system status along with first-out annunciation and system diagnosis using a two-row by twenty-column read out. The KDM provides local or remote annunciation of operation and fault information, remote reset, report generation, burner control data and diagnostic information. The KDM is part of the 7800 SERIES of microprocessor-based burner controls for gas, oil, coal or combination fuel single burner applications.
The 7800 SERIES is programmed to provide a level of safety, functional capabilities and features beyond the capacity of conventional controls.
The S7800A1167 is required to program the Valve Proving feature of select 7800 Series devices.
