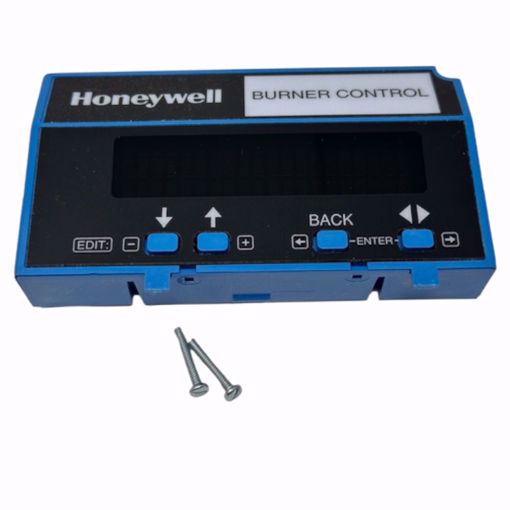

S7800A1142 ENHANCED ENGLISH KEYBOARD DISPLAY MODULE FOR USE WITH 7800

Manufacturer: Honeywell

S7800A1142 ENHANCED ENGLISH KEYBOARD DISPLAY MODULE AND DIAGNOSTIC TOOL FOR USE WITH 7800 SERIES CONTROLS - Dependable, long-term operation provided by microcomputer technology. - First-out annunciation and system diagnostics provided by a 2-row by 20-column display - First-out expanded annunciation with 24 limit and interlock Light Emitting Diodes (LEDs). - Provides burner controller data - Remote reset - Operating Temperature -40°F (-40°C) to +140°F (+60°C). - Communication interface capability. — Through Q7700 Network Interface Unit — Through 203541 Connector on the ModBus data highway. The S7800A1142 Keyboard Display Module (KDM) provides current system status along with first-out annunciation and system diagnosis using a two-row by twenty-column readout. The KDM provides local or remote annunciation of operation and fault information, remote reset, report generation, burner control data and diagnostic information. The KDM is part of the 7800 SERIES of microprocessor-based burner controls for gas, oil, coal or combination fuel single burner applications. The 7800 SERIES is programmed to provide a level of safety, functional capabilities and features beyond the capacity of conventional controls. The S7800A1142 is required to program the Valve Proving feature of select 7800 Series devices

SKU: HONEYWELL:S7800A1142

Product Availability: 1

$564.15

This product must be purchased in increments of 1

Qty:

i h

S7800A1142 ENHANCED ENGLISH KEYBOARD DISPLAY MODULE AND DIAGNOSTIC TOOL FOR USE WITH 7800 SERIES CONTROLS

- Dependable, long-term operation provided by microcomputer technology.
- First-out annunciation and system diagnostics provided by a 2-row by 20-column display
- First-out expanded annunciation with 24 limit and interlock Light Emitting Diodes (LEDs).
- Provides burner controller data
- Remote reset
- Operating Temperature -40°F (-40°C) to +140°F (+60°C).
- Communication interface capability.
— Through Q7700 Network Interface Unit
— Through 203541 Connector on the ModBus data highway.

The S7800A1142 Keyboard Display Module (KDM) provides current system status along with first-out annunciation and
system diagnosis using a two-row by twenty-column readout. The KDM provides local or remote annunciation of operation
and fault information, remote reset, report generation, burner control data and diagnostic information. The KDM is part of
the 7800 SERIES of microprocessor-based burner controls for gas, oil, coal or combination fuel single burner applications.
The 7800 SERIES is programmed to provide a level of safety, functional capabilities and features beyond the capacity of
conventional controls.

The S7800A1142 is required to program the Valve Proving feature of select 7800 Series devices

Products specifications

Manufacturer	Honeywell
