ON-OFF PRIMARY CONTROL WITH PRE & PROGRAMMABLE POST PURGE

Manufacturer: Honeywell

RM7897C2000 HONEYWELL ON-OFF PRIMARY CONTROL WITH PRE & PROGRAMMABLE POST PURGE - 120V - 50/60Hz - Flame Establishing Period- Pilot 4 sec or 10 sec - Interlocks Selectable - Preignition Yes - PrePurge Determined by ST7800A Purge Timer Card - PostPurge Programmed with S7800A1142 display - Temperature Range -40 to 140 F Features - Functions include automatic burner sequencing, flame supervision, system status indication, system or self diagnostics and troubleshooting. - Subbase, amplifier, and prepurge timer are required for operation. - Options include 2 line VDF keyboard display module, DATA CONTROLBUS MODULE, remote display module, and 4-LINE LCD keyboard display module. - Five LEDs provide sequence information. - Interchangeable plug-in flame amplifiers. - Optional remote annunciation of operation and fault information. - Nonvolatile memory retains history files and sequencing status after power loss. - Optional remote reset capability. - Optional report generation. Selectable relight or lockout on loss of flame. - Airflow switch check. Microprocessor-based integrated primary burner control for automatically fired gas, oil, or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls.

SKU: HONEYWELL:RM7897C2000

Product Availability: 6

$979.55

This product must be purchased in increments of 1

Qty:

i h

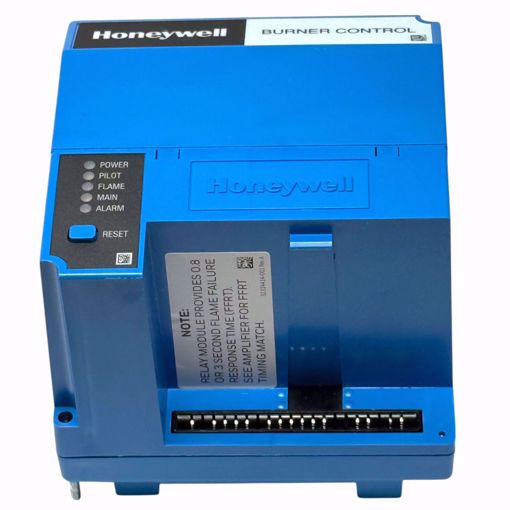

RM7897C2000 HONEYWELL ON-OFF PRIMARY CONTROL WITH PRE & PROGRAMMABLE POST PURGE

- 120V
- 50/60Hz
- Flame Establishing Period- Pilot 4 sec or 10 sec
- Interlocks Selectable
- Preignition Yes
- PrePurge Determined by ST7800A Purge Timer Card
- PostPurge Programmed with S7800A1142 display
- Temperature Range -40 to 140 F

Features
- Functions include automatic burner sequencing, flame supervision, system status indication, system or self diagnostics and troubleshooting.
- Subbase, amplifier, and prepurge timer are required for operation.
- Options include 2 line VDF keyboard display module, DATA CONTROLBUS MODULE, remote display module, and 4-LINE LCD keyboard display module.
- Five LEDs provide sequence information.
- Interchangeable plug-in flame amplifiers.
- Optional remote annunciation of operation and fault information.
- Nonvolatile memory retains history files and sequencing status after power loss.
- Optional remote reset capability.
- Optional report generation. Selectable relight or lockout on loss of flame.
- Airflow switch check.

Microprocessor-based integrated primary burner control for automatically fired gas, oil, or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls.

Products specifications

Manufacturer	Honeywell
