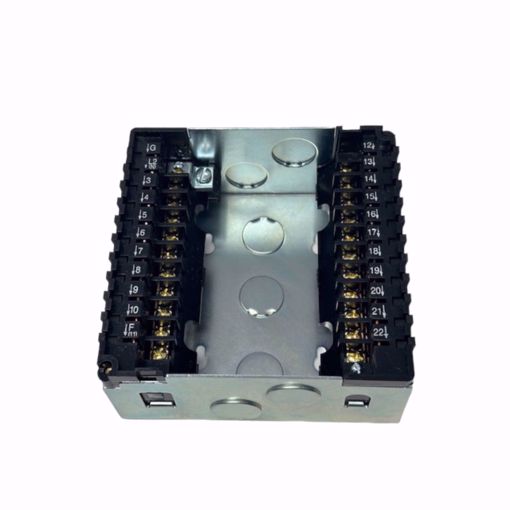

Q7800B1003 METAL 7800 SERIES SUBBASE. BURNER PANEL OR WALL

Manufacturer: Honeywell

- 22 Terminals - Temperature Range -40 F to 140 F FEATURES - Quick-mount wiring subbase for all 7800 SERIES Relay Modules and S7830 Expanded Annunciator. - Allows wiring of control system before installation of relay module. - Can be panel mounted (Q7800A) or burner or wall mounted (Q7800B). - Access slots provided for electrical measurement. - NEMA 1 enclosure. - Electrical access slot covers provided with Q7800B; available as an option for Q7800A/ The Q7800A,B is a universal wiring subbase for the 7800 SERIES Relay Modules and Expanded Annunciator (S7830A). The universal wiring subbase provides terminals for field wiring. Knife blade terminals located on the 7800 SERIES Relay Module or S7830A engage the Q7800 bifurcated contacts to make electrical connections.

SKU: HONEYWELL:Q7800B1003

Product Availability: 3

$43.04

This product must be purchased in increments of 1

Qty:

i h

- 22 Terminals
- Temperature Range -40 F to 140 F

FEATURES
- Quick-mount wiring subbase for all 7800 SERIES Relay Modules and S7830 Expanded Annunciator.
- Allows wiring of control system before installation of relay module.
- Can be panel mounted (Q7800A) or burner or wall mounted (Q7800B).
- Access slots provided for electrical measurement.
- NEMA 1 enclosure.
- Electrical access slot covers provided with Q7800B; available as an option for Q7800A/

The Q7800A,B is a universal wiring subbase for the 7800 SERIES Relay Modules and Expanded Annunciator
(S7830A). The universal wiring subbase provides terminals for field wiring. Knife blade terminals located on the 7800 SERIES Relay Module or S7830A engage the Q7800 bifurcated contacts to make electrical connection.

Products specifications

Manufacturer	Honeywell
