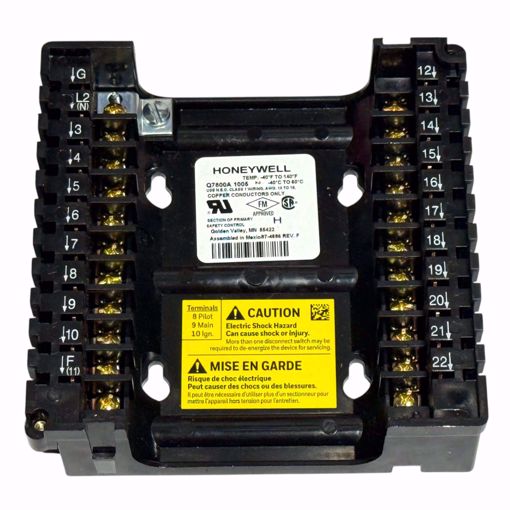

Q7800A1005 HONEYWELL SUBBASE PANEL MOUNT FOR USE WITH 7800 SERIES RELAY MODULES

Manufacturer: Honeywell

Q7800A1005 HONEYWELL SUBBASE PANEL MOUNT FOR USE WITH 7800 SERIES RELAY MODULES - 22 Terminals - Temperature Range -40 to 140 F - Plastic Body FEATURES - Quick-mount wiring subbase for all 7800 SERIES Relay Modules and S7830 Expanded Annunciator. - Allows wiring of control system before installation of relay module. - Can be panel mounted (Q7800A) or burner or wall mounted (Q7800B). - Access slots provided for electrical measurement. - NEMA 1 enclosure. - Electrical access slot covers provided with Q7800B; available as an option for Q7800A/ The Q7800A,B is a universal wiring subbase for the 7800 SERIES Relay Modules and Expanded Annunciator (S7830A). The universal wiring subbase provides terminals for field wiring. Knife blade terminals located on the 7800 SERIES Relay Module or S7830A engage the Q7800 bifurcated contacts to make electrical connections.

SKU: HONEYWELL:Q7800A1005

Product Availability: 6

$43.04

This product must be purchased in increments of 1

Qty:

i h

Q7800A1005 HONEYWELL SUBBASE PANEL MOUNT FOR USE WITH 7800 SERIES RELAY MODULES

- 22 Terminals
- Temperature Range -40 to 140 F
- Plastic Body

FEATURES
- Quick-mount wiring subbase for all 7800 SERIES Relay Modules and S7830 Expanded Annunciator.
- Allows wiring of control system before installation of relay module.
- Can be panel mounted (Q7800A) or burner or wall mounted (Q7800B).
- Access slots provided for electrical measurement.
- NEMA 1 enclosure.
- Electrical access slot covers provided with Q7800B; available as an option for Q7800A/

The Q7800A,B is a universal wiring subbase for the 7800 SERIES Relay Modules and Expanded Annunciator (S7830A). The universal wiring subbase provides terminals for field wiring. Knife blade terminals located on the 7800 SERIES Relay Module or S7830A engage the Q7800
bifurcated contacts to make electrical connections.

Products specifications

Manufacturer	Honeywell
