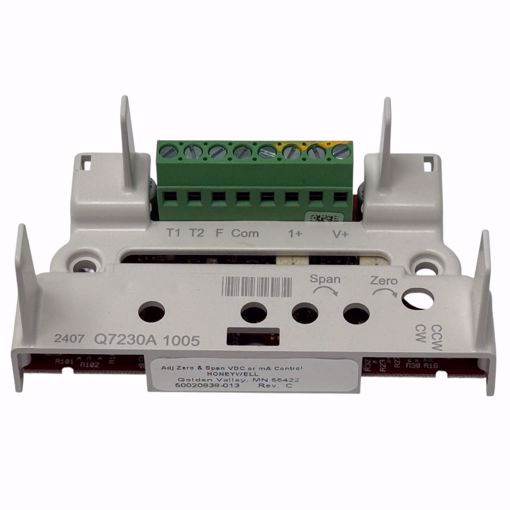

Q7230A1005 HONEYWELL CTRL INTERFACE MODULE FOR CURRENT OR VOLTAGE SIGN

Q7230A1005 HONEYWELL CTRL INTERFACE MODULE FOR CURRENT OR VOLTAGE SIGN - 50/60hz - Temperature Range -40 F to 150 F - Used with: Series 90 for conversion to Series 70 - Control Signal: Provides adjustable zero & span, voltage or current control (includes 2-10 Vdc or 4-20 mA). Adapts M91XX to function as M72XX model. - Mounting: Mounts to quick-connects inside Mod Motor - Electrical Connections: Terminal Board - Power Consumption Driving (VA): 2 VA FEATURES • Mounts inside the wiring box of any Series 90 Modutrol IV Motor (M91XX models). Module protected from weather by the Modutrol IV NEMA 3 wiring box. • Mates to quick-connect terminals in motor wiring box and provides screw terminals for control wiring connections. • Features solid state circuitry with surface mount components. • Plastic enclosure provides easy handling and protection for circuitry. • Q7130A provides selectable voltage range (4-7, 6-9, or 10.5-13.5 Vdc). Adapts M91XX Modtrol IV Motor to function as M71XX model for M734H,J, M744D, M745G,P replacements. Includes reversing switch to allow replacement of electrically normally open or electrically normally closed motors. • Q7230A provides current or voltage control (4-20 mA and 2-10 Vdc) with adjustable zero and span. Adapts the M91XX Modutrol IV Motor to function as M72XX model for M744S,T,Y or M745S,T,Y replacements. Includes reversing switch to allow replacement of electrically normally open or electrically normally closed motors. • Q7330A is an interface to W936 and W945 controls. Adapts the M91XX Modutrol IV Motor to function as M73XX model for M734D, M744A, M745A replacements. The Q7130, Q7230, and Q7330 Modutrol IV Interface Modules are used with Series 90 Modutrol IV Motors (M91XX) for conversion to electronic (Series 70) control.
