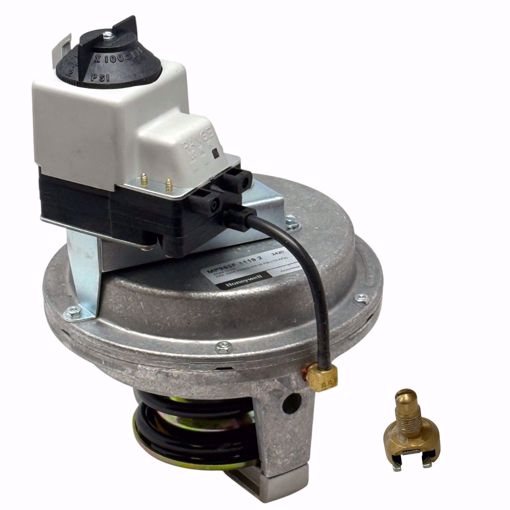

MP953F1119 HONEYWELL 10 PSI OPERATING RANGE. PNEUMATIC VALVE ACTUATOR.
Specifications:
- Actuator Type: Valve
- Actuator Force: high
- Action: Direct Acting
- Stroke: 3/4 in.
- Maximum Safe Operating Pressure (psi): 25 psi (175 KPA)
- Temperature Range (F): 0 F to 140 F
- Fail Safe Mode: Spring Return
- Air Connections: Pilot barbed fitting for 5/32 in. O.D. and 1/4 in. O.D. plastic tubing
- Operating Humidity Range: 5 to 95% RH
- Actuator spring range 8 to 13 psi
- 10 psi range
- 7" Pneumatic Valve Actuator
FEATURES
• Rolling diaphragm for long life and low hysteresis
• Easily attached to valve
• May be installed after piping valve
• Slide lock feature permits simple engagement to valve stem
• Direct- or reverse-action control
• Models available with positive positioning relay
Includes Honeywell part number 316059A York Assembly MP953D & F
MP953 Pneumatic Actuators operate V5011 and V5013 Valves to provide proportional control of steam or hot and cold liquids of HVAC systems.
