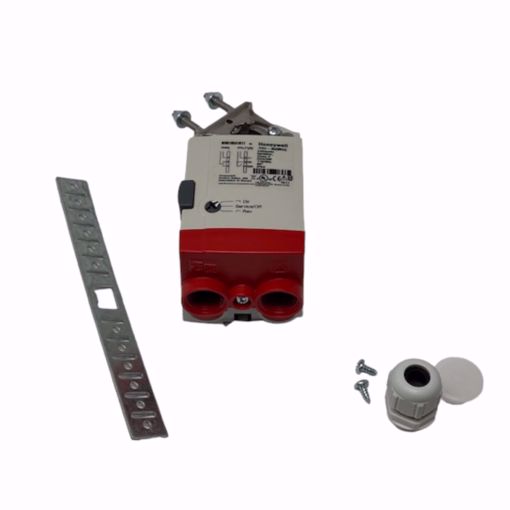

MN6105A1011 44 LB-IN NON-SPRING RETURN DIRECT COUPLED DAMPER ACTUATOR- D

Manufacturer: Honeywell

24V Torque 44 lb-in Control Signal 2 position, Floating 50/60Hz Power Consumption 5 VA Time to Close 95 sec Contact Form SPDT Maximum Operating Temperature 140 F Stroke Degree 95 Shaft Type U-Bolt Clamp NEMA Rating 2 Features - Declutch for manual adjustment - Adjustable mechanical end limits - Removable access cover for direct wiring - Mountable in any orientation - Function selection switch for selecting modulating or floating/2-position control Two Position, Float Actuator - 44 lb-in. This non-spring return direct-coupled damper actuator provides floating and two-position control for: air dampers, VAV units, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 Nm) and 20 sq ft (1.9 sq m) / 88 lb-in. (10 Nm) (seal-less damper blades; air friction- dependent).

SKU: HONEYWELL:MN6105A1011

Product Availability: 1

$119.00

This product must be purchased in increments of 1

Qty:

i h

24V
Torque 44 lb-in
Control Signal 2 position, Floating
50/60Hz
Power Consumption 5 VA
Time to Close 95 sec
Contact Form SPDT
Maximum Operating Temperature 140 F
Stroke Degree 95
Shaft Type U-Bolt Clamp
NEMA Rating 2

Features
- Declutch for manual adjustment
- Adjustable mechanical end limits
- Removable access cover for direct wiring
- Mountable in any orientation
- Function selection switch for selecting modulating or floating/2-position control

Two Position, Float Actuator - 44 lb-in. This non-spring return direct-coupled damper actuator provides floating and two-position control for: air dampers, VAV units, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 Nm) and 20 sq ft (1.9 sq m) / 88 lb-in. (10 Nm) (seal-less damper blades; air friction- dependent).

Products specifications

Manufacturer	Honeywell
