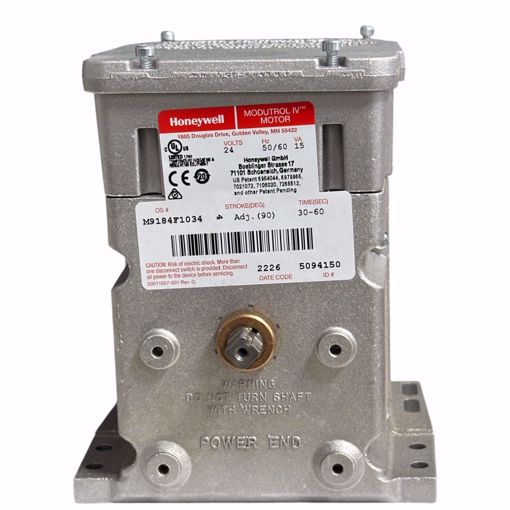

150LB-IN ADJ STROKE 90 -160 DEG 30-60 SEC 2 AUX SW PROPORTIO

Manufacturer: Honeywell

- Torque Rating (lb-in.): 150 lb-in - 24 V - 50/60 Hz - 15 VA - Stroke Adj 90 Deg - Nominal Timing (sec): 30-60 sec - Temperature Range: -40 to 150F - Mounting Foot- Mounted - Motor Shaft Dual Ended Shaft - Control Signal 135 Ohm - Fail Safe Mode Non-Spring Return - Internal Aux Switch 2 - Control signal Proportional Features - Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position. - Motor and circuitry operate from 24 Vac. - Quick-connect terminals are standard--screw terminal adapter is available. - Adapter bracket for matching shaft height of older motors is available. - Motors have field adjustable stroke (90 to 160 degrees). - Integral auxiliary switches are available factory mounted, or can be field added. - All models have dual shafts (slotted and tapped on both ends). - All models have auxiliary switch cams. - Fixed torque throughout the entire voltage range. The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves

SKU: HONEYWELL:M9184F1034

Product Availability: Out of stock

$1,815.10

This product must be purchased in increments of 1

Qty:

i h

- Torque Rating (lb-in.): 150 lb-in
- 24 V
- 50/60 Hz
- 15 VA
- Stroke Adj 90 Deg
- Nominal Timing (sec): 30-60 sec
- Temperature Range: -40 to 150F
- Mounting Foot- Mounted
- Motor Shaft Dual Ended Shaft
- Control Signal 135 Ohm
- Fail Safe Mode Non-Spring Return
- Internal Aux Switch 2
- Control signal Proportional

Features
- Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
- Motor and circuitry operate from 24 Vac.
- Quick-connect terminals are standard--screw terminal adapter is available.
- Adapter bracket for matching shaft height of older motors is available.
- Motors have field adjustable stroke (90 to 160 degrees).
- Integral auxiliary switches are available factory mounted, or can be field added.
- All models have dual shafts (slotted and tapped on both ends).
- All models have auxiliary switch cams.
- Fixed torque throughout the entire voltage range.

The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves

Products specifications

Manufacturer	Honeywell
