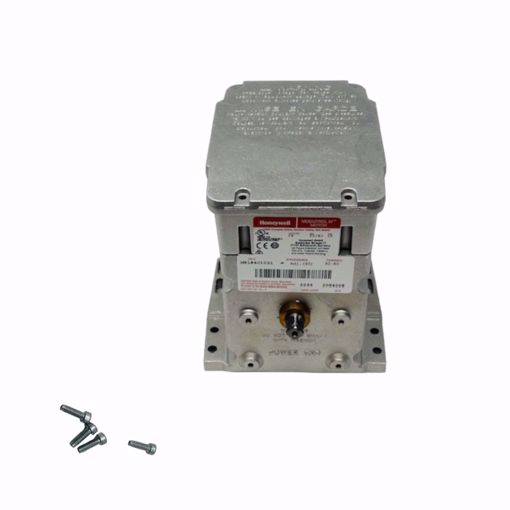

20VA 24V 50/60HZ. 90 DEG STROKE. 30 SEC TIMING.

Manufacturer: Honeywell

24V 50/60Hz Motor Shaft: Dual ended Shaft Stroke: Adjustable; 90 to 160 degrees, Symmetrical Torque Rating (lb-in.): 150 lb-in Frequency: 50 Hz, 60 Hz 20VA Mounting: foot-mounted Temperature Range: -40 to 150F Nominal Timing (sec): 30 -60 sec Features • Integral junction box provides NEMA 3 weather protection. • Integral spring return returns motor to normal position when power is interrupted. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Quick-connect terminals are standard—screw terminal adapter is available. • Motors have field adjustable stroke (90° to 160°) • Die-cast aluminum housing. • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). • Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications. • All models have dual shafts (slotted and tapped on both ends). • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. • Motors are designed for either normally open or normally closed valves and dampers. The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

SKU: HONEYWELL:M9184C1031

Product Availability: Out of stock

$1,258.39

This product must be purchased in increments of 1

Qty:

i h

24V
50/60Hz
Motor Shaft: Dual ended Shaft
Stroke: Adjustable; 90 to 160 degrees, Symmetrical
Torque Rating (lb-in.): 150 lb-in
Frequency: 50 Hz, 60 Hz
20VA
Mounting: foot-mounted
Temperature Range: -40 to 150F
Nominal Timing (sec): 30 -60 sec

Features
• Integral junction box provides NEMA 3 weather protection.
• Integral spring return returns motor to normal position when power
is interrupted.
• Motor and circuitry operate from 24 Vac. Models available with
factory installed transformer, or a field added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is
available.
• Motors have field adjustable stroke (90° to 160°)
• Die-cast aluminum housing.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke).
• Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications.
• All models have dual shafts (slotted and tapped on both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or normally closed valves and dampers.

The Series 90 Modutrol IV Motors are spring return and
non-spring return modulating proportional control motors. Use
these motors with controllers that provide a Series 90 output
to operate dampers or valves.

Products specifications

Manufacturer	Honeywell
