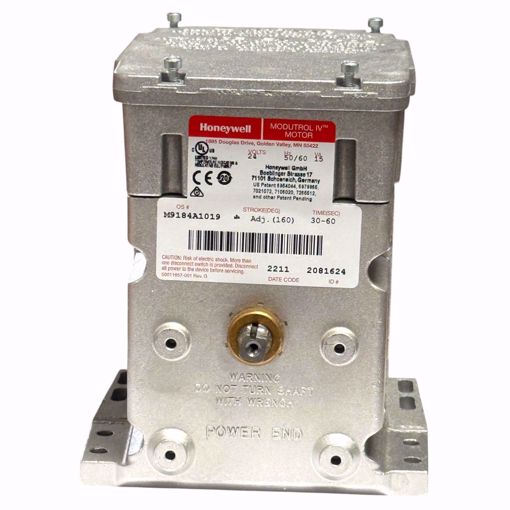

M9184A1019 HONEYWELL REPLACES M944A1010 24V 50/60HZ 20VA 150LB-IN 160

Manufacturer: Honeywell

M9184A1019 HONEYWELL REPLACES M944A1010 24V 50/60HZ 20VA 150LB-IN 160 - 24V - 50/60Hz - 15 VA - Timing 30 to 60 seconds - Torque 150 lb-in - Mounting Foot - Temp Range -40 to 150 F - Fail Safe Mode Non-Spring Return - Stroke: Adjustable; 90 to 160 degrees - Motor Shaft: Dual ended Shaft Features - Integral junction box provides NEMA 3 weather protection. - Integral spring return returns motor to normal position when power is interrupted - Quick-connect terminals are standard—screw terminal adapter is available - Motors have field adjustable stroke (90° to 160°). - Die-cast aluminum housing. - Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). - All models have dual shafts (slotted and tapped on both ends). - Fixed torque throughout the entire voltage range. The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

SKU: HONEYWELL:M9184A1019

Product Availability: Out of stock

$1,396.60

This product must be purchased in increments of 1

Qty:

i h

M9184A1019 HONEYWELL REPLACES M944A1010 24V 50/60HZ 20VA 150LB-IN 160

- 24V
- 50/60Hz
- 15 VA
- Timing 30 to 60 seconds
- Torque 150 lb-in
- Mounting Foot
- Temp Range -40 to 150 F
- Fail Safe Mode Non-Spring Return
- Stroke: Adjustable; 90 to 160 degrees
- Motor Shaft: Dual ended Shaft

Features
- Integral junction box provides NEMA 3 weather protection.
- Integral spring return returns motor to normal position when power is interrupted
- Quick-connect terminals are standard—screw terminal adapter is available
- Motors have field adjustable stroke (90° to 160°).
- Die-cast aluminum housing.
- Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke).
- All models have dual shafts (slotted and tapped on both ends).
- Fixed torque throughout the entire voltage range.

The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

Products specifications

Manufacturer	Honeywell
