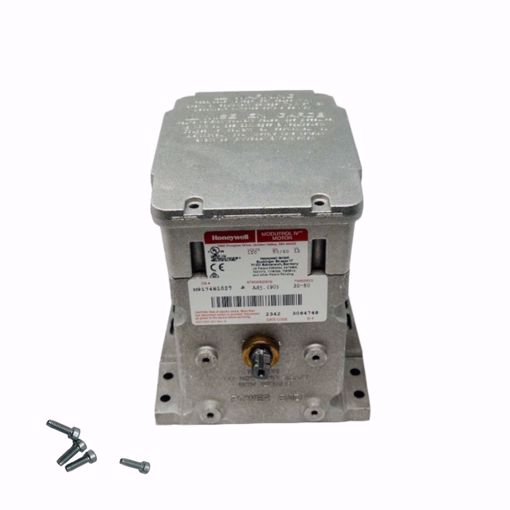

75LB-IN 90 DEG STROKE 30 SEC PROPORTIONAL 1 AUX SW 120V 50/6

Manufacturer: Honeywell

120V Fail Safe Mode: Non-Spring Return Torque Rating (lb-in.): 75 lb-in 50/60Hz 20VA Mounting: foot-mounted Temperature Range: -40 to 150F Nominal Timing (sec): 30 -60 sec Features • Integral junction box provides NEMA 3 weather protection. • Integral spring return returns motor to normal position when power is interrupted. • Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer. • Quick-connect terminals are standard—screw terminal adapter is available. • Motors have field adjustable stroke (90° to 160°). • Die-cast aluminum housing. • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). • Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications. • All models have dual shafts (slotted and tapped on both ends). • All models have auxiliary switch cams. • Fixed torque throughout the entire voltage range. • Motors are designed for either normally open or normally closed valves and dampers. The Series 90 Modutrol IV™ Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

SKU: HONEYWELL:M9174B1027

Product Availability: 1

$1,148.28

This product must be purchased in increments of 1

Qty:

i h

120V
Fail Safe Mode: Non-Spring Return
Torque Rating (lb-in.): 75 lb-in
50/60Hz
20VA
Mounting: foot-mounted
Temperature Range: -40 to 150F
Nominal Timing (sec): 30 -60 sec

Features
• Integral junction box provides NEMA 3 weather protection.
• Integral spring return returns motor to normal position when power
is interrupted.
• Motor and circuitry operate from 24 Vac. Models available with
factory installed transformer, or a field added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is
available.
• Motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke).
• Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications.
• All models have dual shafts (slotted and tapped on both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or normally closed
valves and dampers.

The Series 90 Modutrol IV™ Motors are spring return and
non-spring return modulating proportional control motors. Use
these motors with controllers that provide a Series 90 output
to operate dampers or valves.
