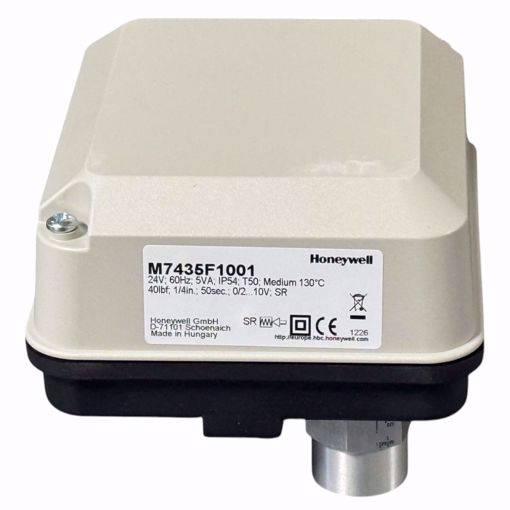

40.5 LB (180N) ACTUATOR FOR 1/2 AND 3/4 V58 CARTRIDGE GLOBE

Manufacturer: Honeywell

- 24V - 60Hz - 5VA - IP54 - 40.5 lb-in Torque - 1/4" Stroke - Timing, Nominal Driving @ 60 Hz, 50 seconds - Temperature Range Ambient 32 to 122 F - Temperature Range Storage -40 F to 158 F - Operating Humidity Range 5 to 95 % FEATURES - Small size allows installation in limited space. - Long stroke allows wider range of control. Actuators - Low power consumption. - Synchronous motor. - No mounting tools required (including the MP958). - Low-maintenance plastic housing. - Conduit connector standard. - No separate linkage required. - M64XXA provides 3-position floating control without proportional feedback. - M74XXF receives 0 to 10 Vdc or 2 to 10 Vdc input signal, selectable at the site. - M74XXF includes direct/reverse acting switch. Spring Return (M6435A, M7435F) - Force-limiting end switches. - No calibration. M6435A and M7435F Series 1000 Spring Return Valve Actuators provide floating or modulating control of Series 1000 and 2000 V5852A, V5853A, V5862A and V5863A Cartridge Globe Valves. The actuators are used in electronic temperature control systems, which use hot and/or cold water (with glycol up to 50 percent) as the controlled medium in variable air volume (VAV) terminal units, fan-coil units, small reheaters and recoolers.

SKU: HONEYWELL:M7435F1001

Product Availability: Out of stock

$279.53

This product must be purchased in increments of 1

Qty:

i h

- 24V
- 60Hz
- 5VA
- IP54
- 40.5 lb-in Torque
- 1/4" Stroke
- Timing, Nominal Driving @ 60 Hz, 50 seconds
- Temperature Range Ambient 32 to 122 F
- Temperature Range Storage -40 F to 158 F
- Operating Humidity Range 5 to 95 %

FEATURES
- Small size allows installation in limited space.
- Long stroke allows wider range of control.

Actuators
- Low power consumption.
- Synchronous motor.
- No mounting tools required (including the MP958).
- Low-maintenance plastic housing.
- Conduit connector standard.
- No separate linkage required.
- M64XXA provides 3-position floating control without proportional feedback.
- M74XXF receives 0 to 10 Vdc or 2 to 10 Vdc input signal, selectable at the site.
- M74XXF includes direct/reverse acting switch.

Spring Return (M6435A, M7435F)
- Force-limiting end switches.
- No calibration.

M6435A and M7435F Series 1000 Spring Return Valve Actuators provide floating or modulating control of Series 1000 and 2000 V5852A, V5853A, V5862A and V5863A Cartridge Globe Valves.

The actuators are used in electronic temperature control systems, which use hot and/or cold water (with glycol up to 50 percent) as the controlled medium in variable air volume (VAV) terminal units, fan-coil units, small reheaters and recoolers.

Products specifications

Manufacturer	Honeywell
