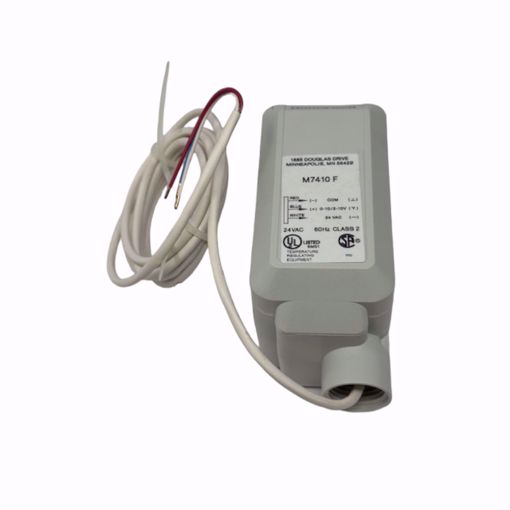

M7410F3006 67.5 LB (300N) ACTUATOR FOR 1 THROUGH 1-1/2 (SE

Manufacturer: Honeywell

24V 60Hz Actuator Type: Valve Application Type: HVAC Torque/Force (lb-in., lbf) : 67.5 lbf Fail Safe Mode: Stays in Place Control Signal: 2 to 10 Vdc, 0 to 10 Vdc Supply Voltage: 24 Vac +10/-30% Number of Internal Auxiliary Switch: 0 Switches: No Medium Temperature: 266 F Maximum Manual Operation: None (use valve dust cap) Stroke: 1/4 in Mounting: Threads onto V58XX valve bonnet Timing, Nominal Driving @ 60 Hz (sec): 125 Sec Temperature Range, Ambient (F): 32 F to 122 F Temperature Range, Storage (F): -40 F to 158 F Operating Humidity Range (% RH): 5 to 95% Used with: 1 inch to 1-1/2 inch V58XX Globe Valves This actuator is used in electronic temperature control systems, which use hot and/or cold water (with glycol up to 50%) as the controlled medium in variable air volume (VAV) terminal units, fan-coil units, small reheaters and recoolers.

SKU: HONEYWELL:M7410F3006

Product Availability: 1

$196.22

This product must be purchased in increments of 1

Qty:

i h

24V
60Hz
Actuator Type: Valve
Application Type: HVAC
Torque/Force (lb-in., lbf) : 67.5 lbf
Fail Safe Mode: Stays in Place
Control Signal: 2 to 10 Vdc, 0 to 10 Vdc
Supply Voltage: 24 Vac +10/-30%
Number of Internal Auxiliary Switch: 0
Switches: No
Medium Temperature: 266 F Maximum
Manual Operation: None (use valve dust cap)
Stroke: 1/4 in
Mounting: Threads onto V58XX valve bonnet
Timing, Nominal Driving @ 60 Hz (sec): 125 Sec
Temperature Range, Ambient (F): 32 F to 122 F
Temperature Range, Storage (F): -40 F to 158 F
Operating Humidity Range (% RH): 5 to 95%
Used with: 1 inch to 1-1/2 inch V58XX Globe Valves

This actuator is used in electronic temperature control systems, which use hot and/or cold water (with glycol up to 50%) as the controlled medium in variable air volume (VAV) terminal units, fan-coil units, small reheaters and recoolers.

Products specifications

Manufacturer	Honeywell
