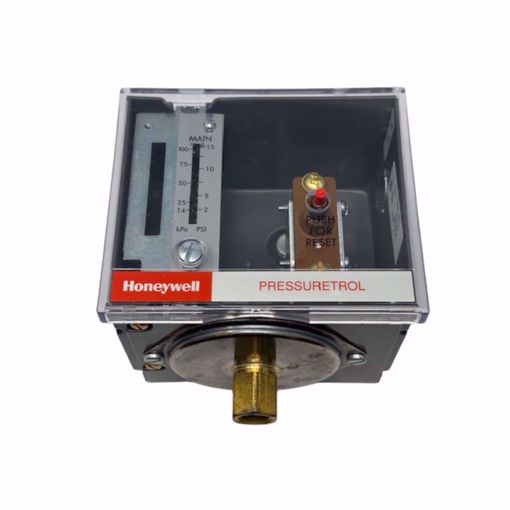

L4079B1033 PRESSURETROL 2-15 PSI MANUAL RESET BREAK ON RISE SPST

Manufacturer: Honeywell

- Maximum Pressure 25 PSI - Minimum Pressure 2 PSI - Maximum Pressure Differential 6 PSI - Minimum Operating Pressure 2 PSI - Operating Range 2 to 15 SPI - Maximum Operating Pressure 15 PSI - Switch Action Breaks on pressure rise. Features - L4079B has one spst switch. - L4079W is the same as L4079B, but with seals for oil applications. - MICRO SWITCH snap-acting switches are visible through transparent cover. - Switches open automatically, but must be reset manually. - Trip-free reset mechanisms do not permit the limiting role of the PressureTrol Control to be defeated by jamming the reset lever. - Control does not need leveling. - Mount using 1/4 in. NPT female fitting on diaphragm assembly or surface mount through back of case. The L4079A,B, and W PressureTrol Limit Controls are high pressure limit switches which break electrical circuits when pressure rises to a preset value. The L4079A and B can be used with steam, air, noncombustible gases, and fluids noncorrosive to the sensing element.

SKU: HONEYWELL:L4079B1033

Product Availability: 2

$195.47

This product must be purchased in increments of 1

Qty:

i h

- Maximum Pressure 25 PSI
- Minimum Pressure 2 PSI
- Maximum Pressure Differential 6 PSI
- Minimum Operating Pressure 2 PSI
- Operating Range 2 to 15 SPI
- Maximum Operating Pressure 15 PSI
- Switch Action Breaks on pressure rise.

Features
- L4079B has one spst switch.
- L4079W is the same as L4079B, but with seals for oil applications.
- MICRO SWITCH snap-acting switches are visible through transparent cover.
- Switches open automatically, but must be reset manually.
- Trip-free reset mechanisms do not permit the limiting role of the PressureTrol Control to be defeated by jamming the reset lever.
- Control does not need leveling.
- Mount using 1/4 in. NPT female fitting on diaphragm assembly or surface mount through back of case.

The L4079A,B, and W PressureTrol Limit Controls are high pressure limit switches which break electrical circuits when pressure rises to a preset value.

The L4079A and B can be used with steam, air, noncombustible gases, and fluids noncorrosive to the sensing element.

Products specifications

Manufacturer	Honeywell
