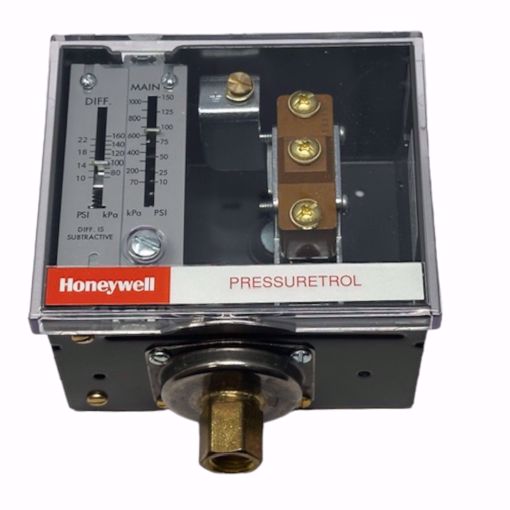

L404F1102 HONEYWELL PRESSURETROL SPDT 10 - 150 PSI MAX DIAP

- Maximum Pressure 225 PSI - Minimum Pressure PSI 15 PSI - Pressure Differential 10 PSI to 22 PSI - Operating Range 10 PSI to 150 PSI - Maximum Pressure Differential 22 PSI - Minimum Operating Pressure 10 PSI - Switching Action: SPDT snap action, make R-W, break R-B on pressure rise - Pipe Connection: Main or High Pressure--1/4 in. NPT internal thread FEATURES • Models available in a series of control ranges, and pressure scales in kPa and psi. • All models automatically reset and have an adjustable differential. • Models have snap switch to open or close a circuit on a pressure rise. • Case has a clear plastic cover so setpoints can be observed. • 1/4 inch—18 NPT connection for pipe on diaphragm assembly. • Ground screw terminal. L404F: • Controllers may be used with steam, air, or noncombustible gases, or fluids noncorrosive to the pressure sensing element. L404F PressureTrol Controllers provide operating control with automatic limit protection for pressure systems of up to 2070 kPa, or 300 ps
