- 50/60Hz
- Operating Humidity Range (% RH) 5 to 95% relative humidity, non-condensing
- Voltage 24 Vac; Power Consumption--7.7 VA
- Ambient Temperature Range 125 F Maximum
- Sweat Connection
- Electrical Connections (in.) 18 in. leads
- Timing Nominal Open--30 sec

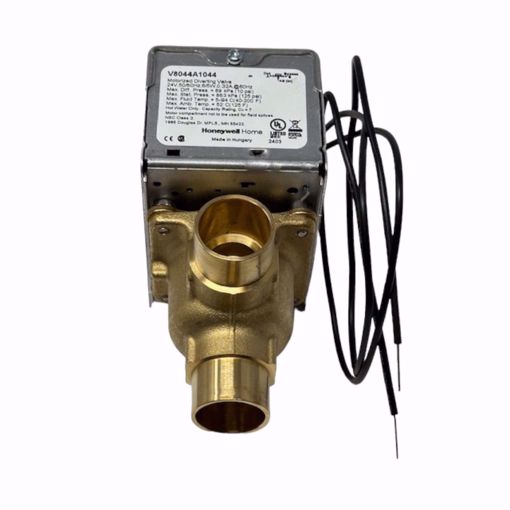

- Three-way, Diverting Body Pattern
- 3/4" Pipe Size
- Current Draw 0.32A
- Fluid Temperature 40 F to 200 F
- Maximum Differential Pressure Ratings (Close-off) (psi) 10 PSI
- Capacity (Cv) 7.0 Cv
- Valve Action Spring Return
- Brass Body
- Stainless Steel Stem
- De-energized Position Port A Normally Closed
- Static Pressure Rating (psi) 125 PSI
- Materials (Plug/Ball/Disc) Buna-N (NBR) Rubber Ball
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
On-off and diverting low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.
