FLAME SENSOR INFRARED (LEAD SULFIDE) WITH MOUNT

Manufacturer: Honeywell

Lead Wire Length 48" Maximum Temperature 125 F Used With: R7852 Series - Particularly suitable for combination or dual-fuel applications. - When installed properly, can supervise the pilot flame and/ or the main burner flame - Mounts easily on a standard 3/4 inch sight pipe. - The infrared sensor plugs into an electrical socket in the C7915A assembly and is field replaceable. - The lead sulfide photocellís sensitivity to infrared radiation is compatible with a wide range of flame supervisory applications. - Flexible metal cable protects and electrically shields the detector coaxial cables. The C7915A Flame Detector includes a lead sulfide photocell that is sensitive to the infrared radiation emitted by the combustion of fuels such as natural gas, oil, and coal.

SKU: HONEYWELL:C7915A1028

Product Availability: 1

$653.90

This product must be purchased in increments of 1

Qty:

i h

Lead Wire Length 48"
Maximum Temperature 125 F
Used With: R7852 Series

- Particularly suitable for combination or dual-fuel applications.
- When installed properly, can supervise the pilot flame and/ or the main burner flame
- Mounts easily on a standard 3/4 inch sight pipe.
- The infrared sensor plugs into an electrical socket in the C7915A assembly and is field replaceable.
- The lead sulfide photocellís sensitivity to infrared radiation is compatible with a wide range of flame supervisory applications.
- Flexible metal cable protects and electrically shields the detector coaxial cables.

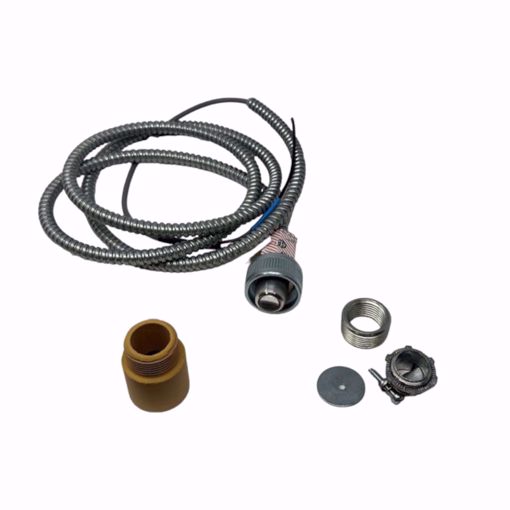

The C7915A Flame Detector includes a lead sulfide photocell that is sensitive to the infrared radiation emitted by the combustion of fuels such as natural gas, oil, and coal.

Replaces C7915A1044

Products specifications

Manufacturer	Honeywell
