Mounting: Mounted in any position where it is exposed to freely circulating air
Electrical Connections: 2-pin header-pin style or 2-pin card edge removable terminal blocks
Operating Humidity Range : (% RH)10 to 90% RH
Sensor: 7-21Vdc
Operating Temperature Range (F) -40 F to 150 F
Ambient Temperature Range (F) 150 F Maximum
Features

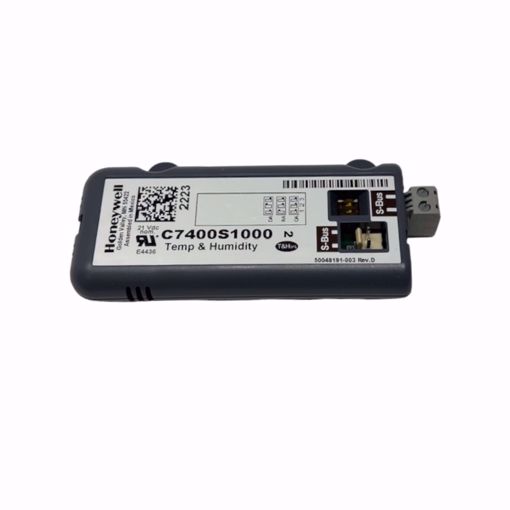

- This unit mounted C7400S enthalpy sensor includes solid state temperature and humidity sensors.
- Outputs a digital communicating signal on a two-wire Sylkbus communications link, reporting the temperature and humidity separately to the controller.
- The controller determines the enthalpy (total heat), enabling economizer modes of operation when outside air enthalpy is suitable for free cooling.
- Enthalpy sensors are compatible with economizer systems.
- When used with an economizer, the enthalpy boundary curve is programmed via the controller. When the temperature and humidity are determined to be suitable based on the relationship to the boundary, the controller allows outside air for economizing.
- Ambient temperature operating range from -40° to 150° F.
- Dual enthalpy sensors in outside air and return switches the controllers to economizer mode of operation anytime the outside enthalpy is less than the return air enthalpy.
- UL recognized component (Guide info XAPX).
Used With:
- W7210 Economizers
- W7212A Economizers
- W7213 Economizers
- W7214 Economizers
- W7215 Economizers
- W7459 Economizers
- W7460 Economizers
Digital enthalpy (humidity/temperature) sensor for use with S-Bus devices and W7220 economizer controller
