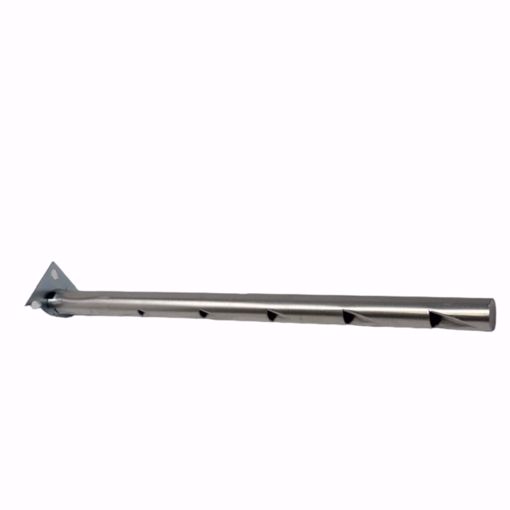

C7100B1013 C7100B1013 AVERAGING DUCT TEMP SENSOR 13 INCH INSERTION

Manufacturer: Honeywell

Temperature Range 40 to 150 F Maximum Temperature 250 F Sensor Type: 22.8 K ohm NTC @ 77 F Features • Calibrated air inlet holes in 13 in. (330 mm) element provide accurate, single-point sensing of average temperature. • C7100A,C Sensors have a nominal sensor resistance of 3484 ohms at 77°F (25°C). • No settings or calibration required. • Mount on duct wall with integral mounting flange or in 2 in. by 4 in. (51 mm by 102 mm) junction box. • C7100B Sensor has a nominal sensor resistance of 22,800 ohms at 77°F (25°C). • Recessed 1/4 in. (6 mm) quick-connect terminals. The C7100A,B,C,D Averaging Temperature Sensors provide the input required by the W7080, W7100, Excel 500, and T775 Control Systems to sense temperature in discharge, hot deck, cold deck or return air.

SKU: HONEYWELL:C7100B1013

Product Availability: Out of stock

$104.18

This product must be purchased in increments of 1

Qty:

i h

Temperature Range 40 to 150 F
Maximum Temperature 250 F
Sensor Type: 22.8 K ohm NTC @ 77 F

Features
• Calibrated air inlet holes in 13 in. (330 mm) element provide accurate, single-point sensing of average temperature.
• C7100A,C Sensors have a nominal sensor resistance of 3484 ohms at 77°F (25°C).
• No settings or calibration required.
• Mount on duct wall with integral mounting flange or in 2 in. by 4 in. (51 mm by 102 mm) junction box.
• C7100B Sensor has a nominal sensor resistance of 22,800 ohms at 77°F (25°C).
• Recessed 1/4 in. (6 mm) quick-connect terminals.

The C7100A,B,C,D Averaging Temperature Sensors provide the input required by the W7080, W7100, Excel 500, and T775 Control Systems to sense temperature in discharge, hot deck, cold deck or return air.

Products specifications

Manufacturer	Honeywell
