🔥 Honeywell C6097B3028 Pressure Switch – 1–20 in WC, Break-on-Rise, Manual Reset, 1/4" NPT

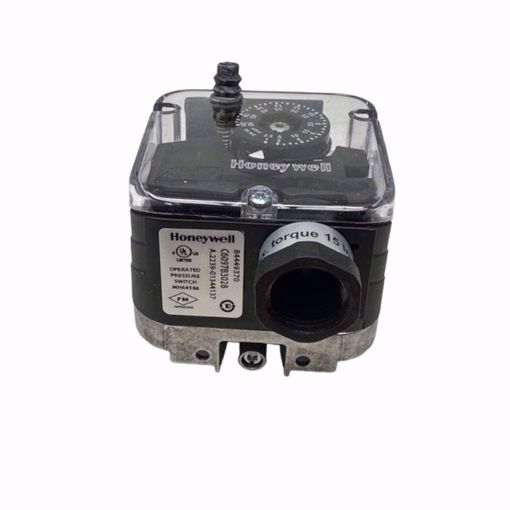

The Honeywell C6097B3028 Pressure Switch is a diaphragm-actuated safety-limit switch designed to protect natural gas, liquid propane (LP) gas, and air systems. With its break-on-rise functionality, this switch opens the control circuit when pressure exceeds the setpoint, providing reliable safety protection.

Equipped with manual reset lockout, the switch ensures the system cannot restart until the pressure fault is corrected. The removable transparent cover protects the scale plate and adjusting knob for easy monitoring and adjustment. Rated IP65 and suitable for temperatures from -40°F to 140°F, the C6097B3028 is ideal for commercial, industrial, and residential applications.

It replaces Honeywell C6097B1069 and C6097B1028, making it a direct OEM replacement for compatible systems.

✅ Key Features

• ✅ Break-on-rise action – opens control circuit on pressure increase

• ✅ Manual reset lockout for added safety

• ✅ Works with natural gas, LP gas, or air systems

• ✅ Diaphragm-actuated for accurate, reliable operation

• ✅ Removable transparent cover protects scale plate and adjusting knob

• ✅ IP65 rated for dust and water resistance

• ✅ Wide temperature range: -40°F to 140°F

• ✅ Direct replacement for C6097B1069 and C6097B1028

• ✅ Can be wired to activate alarms

📊 Technical Specifications

⚠️ Common Symptoms / When to Replace

• ❌ Appliances fail to shut off when system pressure rises above safe levels

• ❌ Frequent switch trips despite normal operating conditions

• ❌ Manual reset button does not restore operation

• ❌ Visible diaphragm wear, leaks, or corrosion

• ❌ Inconsistent or inaccurate pressure readings

❓ Frequently Asked Questions (FAQ)

Q: What does “break-on-rise” mean?

• The switch opens the control circuit when system pressure rises above the setpoint, preventing unsafe operation.

Q: Can this switch be used with gas and air?

• ✅ Yes, it works with natural gas, LP gas, or air systems.

Q: What is manual reset?

• Manual reset requires pressing a reset button after a fault to restart the system, ensuring the cause is corrected first.

Q: Is this a direct replacement for older Honeywell models?

• ✅ Yes, it replaces C6097B1069 and C6097B1028.

Q: What is the maximum operating temperature?

• The switch operates up to 140°F.

🛠️ Installation & Maintenance Tips

• 🧰 Always turn off gas or air supply before installation.

• ⚙️ Ensure the 1/4" NPT pressure connection is tight and leak-free.

• 🔧 Replace the old switch with the C6097B3028, confirming proper break-on-rise operation.

• 🧩 Test the manual reset function to verify correct safety lockout.

• 🔄 Inspect periodically for diaphragm wear, corrosion, or leaks.
