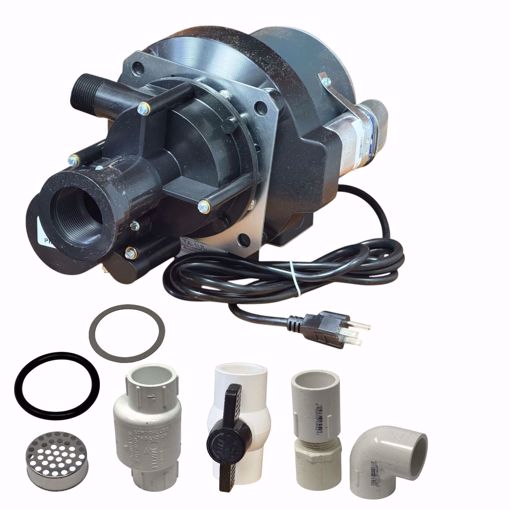

802210 HARTELL LTA SERIES PUMPS

- Model# LTA-1
- 115V @ 3.1 Amps @ 60Hz
- 1/8 HP @ 1625 RPM
- Impeller Material ABS
- Pump Body Material ABS
- Max Head 11 FT
- Cord Length 8 FT
- Basin Capacity 1 Gallon
- Basin Inlet 1-1/2"
- Discharge 1"
- Flow Rate @ 5' of Head 28 GPM
- Flow Rate @ 10' of Head 10 GPM
- Discharge Size 1"
- Maximum Suction Lift 10 FT
- 1 Phase
- Rotation CS-OPE
- 26 GPM Flow Rate
- 356 Watts
- Plug Type NEMA 5-15P

Features
- Mounts directly to sink tailpiece
- No main stack vent connection required*
- ABS high impact, corrosion resistant plastic housing
- Sealed diaphragm pressure switch
- No traps or inlet piping required
- Fits under wet bars, kitchenettes, vanities and utility sinks
- Simple installation saves time
- Takes up no floor space
- Allows sink installation without breaking concrete to drain
- Maximum temperature: 140º F (60º C)

RECOMMENDED MATERIALS FOR PROPER INSTALLATION
o PVC ADAPTER - 1" (2.54 cm) NPT FEMALE X 1" (2.54 cm) SOLVENT (Included)
o PVC CHECK VALVE - 1" (2.54 cm) SOLVENT X 1" (2.54 cm) SOLVENT (Included)
o PVC BALL VALVE (OR EQUIVALENT) - 1" (2.54 cm) SOLVENT X 1" (2.54 cm) SOLVENT (Included)

The HARTELL LTA-1 model pump is a completely self-contained unit designed to remove wastewater from sinks when a traditional gravity drain line is not available. Popular applications include wet bar sinks, kitchenettes, utility sinks, and laundry tray sinks.

Lightweight and compact, the LTA pump mounts directly to the drain tailpiece of your sink, eliminating all traps and inlet piping. The LTA design does not require any connection to the main stack vent which is common with other types of drain pump systems. The LTA pump’s rugged construction, automatic operation, and ease of installation provides the best value in a drain pump that will provide many years of trouble-free service.

Completely self-contained units that are easy to connect directly to laundry tray tubs. Lightweight and compact, these models eliminate reservoirs, traps, extra fittings and costly labor. The LTA-1 includes a pressure-activated switch that turns the pump on when the water enters the tub.
