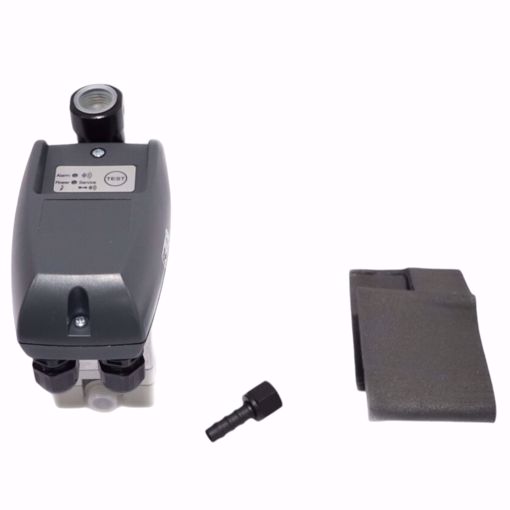

- 24V
- Autodrain
- Alarm sensor
The drain valve operates on a timer-controlled mechanism, allowing for precise and reliable condensate discharge. It comes equipped with a manual override, providing flexibility during maintenance or troubleshooting. The valve is designed to handle high flow rates and pressures, making it suitable for various compressed air systems.
Function
The condensate flows through the feed line (1) into the Series 600 condensate drain and accumulates in the housing (2). A capacitive sensor (3) continuously registers the
liquid level.
As soon as the container is filled, a fixed waiting period begins during which more condensate accumulates. After the waiting time has expired the pilot valve (4) is then activated and the diaphragm (5) opens the outlet line (6) for discharging the condensate. When the Series 600 condensate drain has been emptied, the outlet line is closed again quickly and tightly without
wasting compressed air.
Alarm-mode function:
If normal conditions have not been restored after 1 minute, a fault signal will be triggered:
• Alarm LED flashes.
• Alarm signal switches over (can be transmitted via potential-free contact).
• Valve opens every 80 seconds for a period of 60 seconds.
7428268
