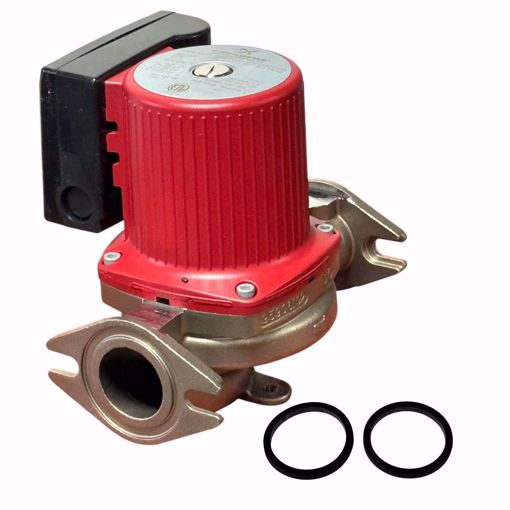

95906639 GRUNDFOS UPS43-100SF 230V 9H IMU
- Product name: UPS 43-100 SF
- Product No: 95906639
- 208 to 230V
- 60Hz
- Thermally Protected
- 1 Phase
Technical
- Speed Number: 3 Speed Pump
- Rated flow: 32.5 US gpm
- Max flow: 65 US gpm
- Rated head 22.33 ft
- Maximum head 30.84 ft
Materials
- Pump housing: Stainless steel
- EN 1.4308
- ASTM A351-CF8
Impeller: Composite
- PES+30% GF
The pump is characterized by:
- Ceramic shaft and radial bearings.
- Carbon axial bearing.
- Stainless steel rotor can and bearing plate.
Installation
- Maximum ambient temperature: 104 °F
- Ambient max at 176°F liquid
- Maximum operating pressure: 145 PSI
Type of connection
- 2-BOLT FLANGE
- S.S. Flange
- Pipe connection: 2-BOLT FLANGE
- Pressure rating for connection: PN 10
- Port-to-port length: 8 9/16 in
Liquid
- Pumped liquid: Water
- Liquid temperature range: 35.6 .. 230 °F
- Selected liquid temperature: 140 °F
- Density: 61.35 lb/ft³
UPS B is a three-speed circulator pump with a corrosion-resistant bronze pump housing designed for hot-water recirculation. The pump provides reliable and maintenance-free operation.
Grundfos UPS B circulator pumps have a bronze pump housing for drinking water applications while Grundfos UP N have a stainless-steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid
