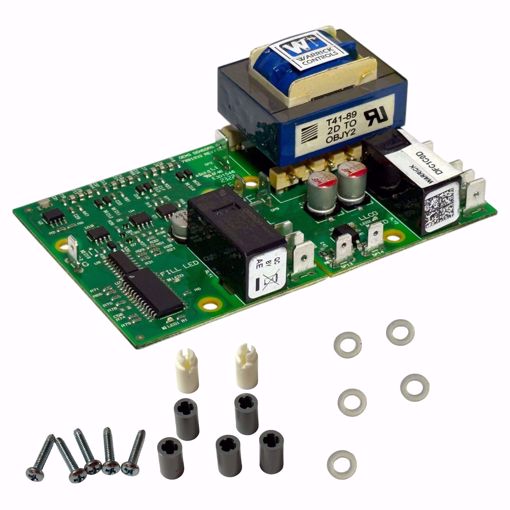

DFC1C0D GEMS 120V PUSHBUTTON DUAL LVL CONT.
- Model: DF
- Sensor Type: Dual Funtion Controls
- Mode Of Operation: Direct
- Sensitivity: 26 K ohms
- Control Style: Open Board
- Standoff Style: Screw Mount
- 120/240 VAC
- Contact Rating 10 Amp Resistive 1/3 HP
- Temp Range -40 to 150 F
Features
- Solid State Reliability
- Compact Size
- Spade Terminals for Easy Wiring
- Manual Reset (optional)
- Power Outage Feature (optional)
- U.L. "Limit Control"
Dual function Series DF models are designed to control two independent level functions: one single-level control operation and one differential-level operation. Optional Power Outage feature resets after nuisance outages. Optional Reset Button is used when the device has been deactivated due to low-water condition. Reset is activated only after water has returned to normal level. This control is ideal in applications on boilers, food service equipment, and chemical delivery systems.
