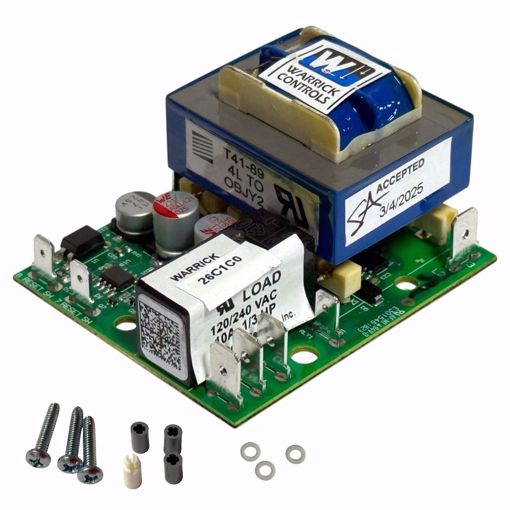

26C1C0 GEMS LWCO 120V 26K OHM SCREW MOUNT
- Model: # 26
- Sensor Type: Low Water Cutoff Controls
- Mode Of Operation: Direct
- Sensitivity: 26 K ohms
- Control Style: Open Board
- Standoff Style: Screw Mount
- Contact Design: 1 Normally Open & 1 Normally Closed (non-powered)
- Contact Rating: 10 Amp Resistive 1/3 horsepower
- Supply Voltage: 120 VAC
- Secondary Voltage: 12 VAC
- Terminal Style: Spade Connection
- Temp Range -40 to 150 F
Features
- Non-Powered Contacts
- Time Delays Available
- LED Monitoring
- Snap-Thru Standoff Mounting
- Power Outage Feature
- Meets CSD1 Requirements
- U.L. "Limit Control"
Series 26 Low-water cutoff open board is designed for boiler low-water cutoff protection. A snap-through standoff mounting device is available for the Series 26. Optional Power Outage feature resets after nuisance outages. The optional reset button is used when the device has been deactivated because of low-water condition. Reset is functional only if water has returned to normal level. Built-in 3 second time delay is standard. Up to 90 seconds available for increasing and decreasing levels.
