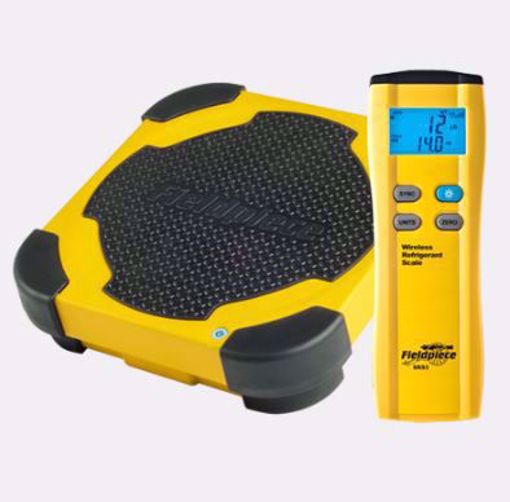

**OBSOLETE USE SR47** Fieldpiece SRS3 Wireless Refrigerant Scale With Remote
What's Included:
Wireless Refrigerant Scale - SRS3
Platform and Remote
Rugged Nylon Case with Carrying Strap
Standard 9-volt Battery (remote) Installed
6 x AA Batteries (platform) Installed
Operator’s Manual
Connect To The Job Link Mobile App* Send live weights directly to your device.
Record and document refrigerant use.
Long Range Wireless (100 feet)
Flat Top Bumpers for Large Tanks
Water Resistant
Measure Up To 252 lb (114 kg)
View Units Your Way
Pounds and Ounces
Pounds
Ounces
Kilograms and Grams
Kilograms
Grams
200 Hour Platform Battery Life
Specifications
Specifications good in ambient conditions of 73°F +/- 9°F
(23°C +/- 5°C), <75% relative humidity
Over range: "OL" is displayed
Maximum load: 252 lbs (114 kg)
Auto power off: 30 minutes of inactivity (no change in weight or
buttons pressed), (APO can be disabled)
Backlight: Blue, turns off in 60 seconds if no buttons are pressed
Accuracy:
+/- 0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
+/- 0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
Resolution and Units:
lb oz (0.25 oz), lb (0.1 lb), oz (0.1 oz),
kg g (10 g), kg (0.1 kg), g (10 g)
Temperature coefficient: 0.1 x (specified accuracy) per °F
Wireless Range: 100 feet (30 meters)
Radio Frequency: 2400 MHz
Battery Type:
Remote Display: 9V, NEDA 1604, JIS 006P, IEC 6F22
Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
Battery Life: is displayed when the battery voltage drops
below the operating level.
Remote Display: 80 hours typical alkaline (without backlight)
Platform: 200 hours typical alkaline
Operating environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH
(with battery removed)
Weight: 7.3 lbs (3.3 kg)
The SRS3 Wireless Refrigerant Scale combines modern wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the life of the product. Rubber pad and bumpers cushion both the tank and the scale itself. A new wireless protocol sends platform measurements to both the included remote display and the Fieldpiece Job LinkTM mobile system app (available Fall 2017). Platform electronics are sealed to block the occasional moisture seen from rain and splashing. Hang the remote display from a condenser or anywhere metallic and easy to see. The magnetic folding hat holds it right where you put it.
Use the SRS3 wireless scale with the included handle or with Job Link Mobile System app. With Job Link you can receive your live weight measurement directly on your mobile device. Add weight into your Job Link mobile system reports, keep records of refrigerant use, or monitor wieht from a distance. Handle wireless range is 100', Job Link mobile system range is 250'.
