46676600 C-SENSOR MUA / VENTILATION CURRENT SENSOR

Manufacturer: Field Controls

C-SENSOR MUA / VENTILATION CURRENT SENSOR 24V 3 Watts ITEMS INCLUDED IN KIT: (1) Model C-Sensor Electronic Makeup Air Sensor, with electrical junction box (2) wiring strain reliefs (1) Envelope containing TVS Diode The C-Sensor Electronic Makeup Air Sensor is intended for use as an accessory to the HHSC+ Ventilation Control and FAD fresh air damper system, and/or optional E-Sensor Enthalpy Damper Control or T-Sensor Temperature Damper Control (items not included). The C-Sensor senses the operation of air-exhausting devices (such as range hoods, dryers, bathroom fans, central vacuum systems etc.), and acts as a switch to provide a 24 VAC input signal to the HHSC+ Ventilation Control, which then operates the FAD fresh air damper and activates the HVAC central fan, to draw air into the house and provide makeup air for the exhausting device. The C-Sensor may also be used in a stand alone makeup air system to control a 24V fresh air damper.

SKU: FIELD CONTROLS:46676600

Product Availability: 1

$122.89

This product must be purchased in increments of 1

Qty:

i h

C-SENSOR MUA / VENTILATION CURRENT SENSOR

24V
3 Watts

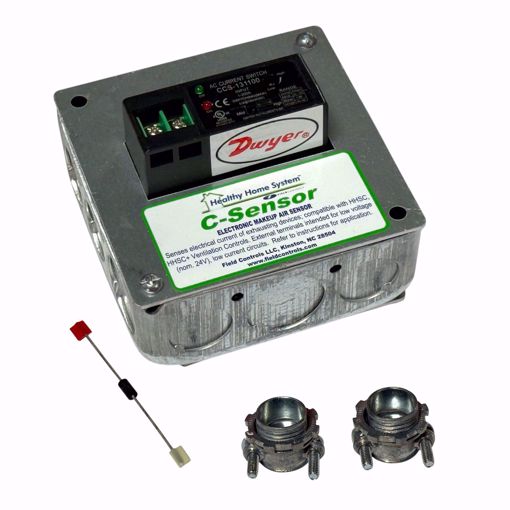

ITEMS INCLUDED IN KIT:
(1) Model C-Sensor Electronic Makeup Air Sensor, with electrical junction box
(2) wiring strain reliefs
(1) Envelope containing TVS Diode

The C-Sensor Electronic Makeup Air Sensor is intended for use as an accessory to the HHSC+ Ventilation Control and FAD fresh air damper system, and/or optional E-Sensor Enthalpy Damper Control or T-Sensor Temperature Damper Control (items not included). The C-Sensor senses the operation of air-exhausting devices (such as range hoods, dryers, bathroom fans, central vacuum systems etc.), and acts as a switch to provide a 24 VAC input signal to the HHSC+ Ventilation Control, which then operates the FAD fresh air damper and activates the HVAC central fan, to draw air into the house and provide makeup air for the exhausting device. The C-Sensor may also be used in a stand alone makeup air system to control a 24V fresh air damper.

Products specifications

Manufacturer	Field Controls
