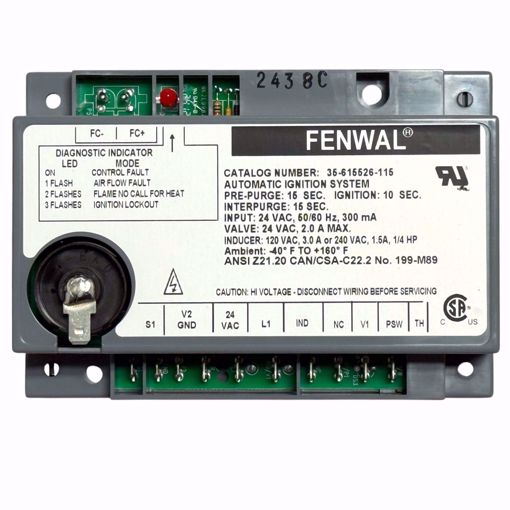

FENWAL 35-615526-115 AUTOMATIC IGNITION SYSTEM

Manufacturer: Fenwal Controls

- Pre-Purge 15 Sec - Ignition 10 Sec - Interpurge 15 Sec - Input 24 VAC, 50/60Hz, 300mA - Valve 24 VAC, 2.0 Amps Max - Inducer 120 VAC, 3.0 Amps or 240 VAC, 1.5 Amps , 1/4 HP - Ambient - 40 F to 160 F 35-615526-115

SKU: FENWAL:35-615526-115

Product Availability: 3

$268.87

This product must be purchased in increments of 1

Qty:

i h

- Pre-Purge 15 Sec
- Ignition 10 Sec
- Interpurge 15 Sec
- Input 24 VAC, 50/60Hz, 300mA
- Valve 24 VAC, 2.0 Amps Max
- Inducer 120 VAC, 3.0 Amps or 240 VAC, 1.5 Amps , 1/4 HP
- Ambient - 40 F to 160 F

35-615526-115
