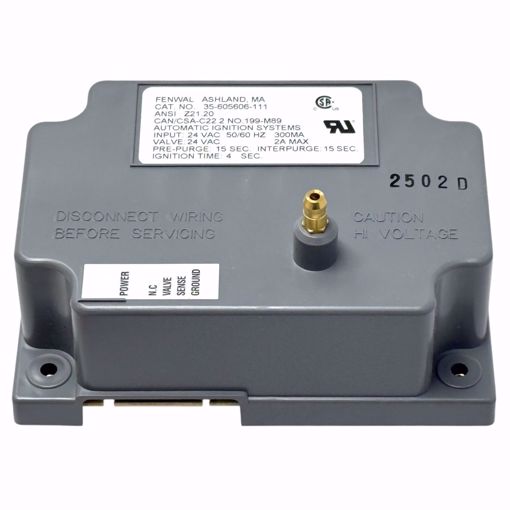

🔥 35-605606-111 Fenwal 24V Direct Spark Ignition Control – 15 Second Prepurge
The Fenwal 35-605606-111 is a 24 VAC microprocessor-based Direct Spark Ignition (DSI) control designed for safe and reliable operation in a wide range of heating applications. With a 15-second prepurge and customizable ignition timing, this control ensures optimal burner performance and enhanced safety features for gas furnaces, boilers, water heaters, and commercial cooking equipment.
✅ Key Features
-
✅ 24 VAC microprocessor-based DSI control for precision ignition
-
✅ 15-second prepurge and 15-second interpurge for safe startup
-
✅ Ignition timing: 4 seconds, Flame sense minimum 0.7 µA
-
✅ Pressure switch monitoring and system diagnostic LED
-
✅ Alarm output with normally closed contact for integration with safety systems
-
✅ Automatic reset 1 hour after lockout
-
✅ Customizable prepurge/interpurge timings
-
✅ Multiple ignition attempts for reliable startup
-
✅ Remote or local flame sensing
-
✅ Flame sense test pins for maintenance and troubleshooting
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
Fenwal |
| Model Number |
35-605606-111 |
| Control Type |
24V Direct Spark Ignition (DSI) |
| Input Voltage |
24 VAC, 50/60Hz, 300 mA |
| Valve Output |
24 VAC, 2A max |
| Pre-Purge |
15 seconds |
| Inter-Purge |
15 seconds |
| Ignition Time |
4 seconds |
| Flame Sense Min |
0.7 µA |
| Applications |
Gas furnaces, boilers, water heaters, commercial cooking equipment |
🔁 Compatible Applications / Use
-
Gas furnaces
-
Boilers (residential & commercial)
-
Water heaters
-
Commercial cooking appliances
-
Other heating appliances requiring DSI control
⚠️ Common Symptoms / When to Replace
-
Burner fails to ignite
-
Frequent lockouts during startup
-
Faulty or intermittent flame sensing
-
System diagnostic LED indicates errors
-
Pressure switch failures or improper prepurge/interpurge sequences
Replacing the Fenwal 35-605606-111 restores safe and reliable ignition and prevents repeated burner lockouts.
💬 Frequently Asked Questions (FAQ) ❓
Q: What is the prepurge and interpurge timing?
A: Prepurge and interpurge are set at 15 seconds each to ensure safe gas clearance before ignition.
Q: Can this be used on commercial boilers?
A: Yes — it is compatible with residential and commercial gas furnaces, boilers, and water heaters.
Q: What does the flame sense test do?
A: The test pins allow maintenance personnel to check flame current and ensure proper flame detection.
Q: How many ignition attempts does the control allow?
A: The control allows multiple tries to safely ignite the burner before a lockout occurs.
🛒 Shopping Tips
-
Verify the voltage and amperage requirements (24 VAC input, 2A valve output)
-
Check that the control is compatible with your appliance type
-
Ensure proper installation of pressure switch and flame sensor
-
Keep a spare DSI control for critical commercial applications
