EPS15-58FC Elite Circulator Pump – 115V, 3-Speed with Check Valve
The EPS15-58FC Elite Circulator Pump is a versatile and reliable solution for hydronic, radiant, solar, and fan coil heating systems. With 3-speed flexibility, a built-in check valve, and quiet operation, this pump delivers consistent performance in both residential and light commercial heating applications. Designed for durability and easy replacement, it includes gaskets, mounting hardware, and an optional line cord for quick installation.
⚠️ Note: Not for use with domestic potable water.
🔑 Key Features
-
3-Speed flexibility for different system requirements
-
Built-in check valve ensures efficient, reliable performance
-

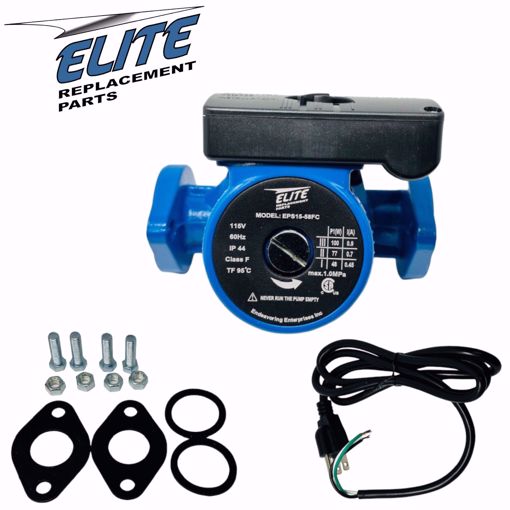

Includes O-ring gaskets, full-face gaskets, nuts, bolts & optional cord
-
Compatible with radiant, hydronic, solar, and fan coil heating systems
-
Quiet operation – perfect for sound-sensitive installations
-
CSA listed for safety and quality assurance
📊 Technical Specifications
| Specification | Details |
|---|
| Product Code |
EPS15-58FC |
| Power Rating |
1/25 HP |
| Voltage |
115V, Single Phase |
| Full Load Current |
0.9 Amp |
| Pump Body Material |
Cast Iron |
| Flange-to-Flange Dimension |
6-3/8" |
| Inlet/Outlet |
Flanged |
| High Speed Performance |
10 GPM @ 19 Ft Head |
| Medium Speed Performance |
6 GPM @ 13 Ft Head |
| Low Speed Performance |
4 GPM @ 6 Ft Head |
🔄 Cross Reference / Replacement Compatibility
| Brand | Replaces |
|---|
| Bell & Gossett |
SLC-25, SLC-30, 103201, 103203, 103253 |
| Weil-McLain |
511-405-118, 103253 |
| Grundfos |
UPS15-42F, UPS20-42F, 59896178, UPS15-42F, UPS15-58FC, 59896341, UP15-42F |
⚙️ Related Parts (Sold Separately)
| Elite Part # | Description |
|---|
| EN519601 |
Flange 3/4" |
| EN519602 |
Flange 1" |
| EN519603 |
Flange 1-1/4" |
| EN519604 |
Flange 1-1/2" |
⚠️ Common Symptoms of a Failing Circulator Pump
-
Uneven heating throughout the system
-
Unusual noise or vibration from the pump
-
Reduced or no water circulation
-
System not maintaining set temperature
-
Leaks around pump body or flanges
✅ Quick Compatibility Reference
| Series | Models Supported |
|---|
| Elite EPS Series |
EPS15-58FC |
| Grundfos UPS Series |
UPS15-42F, UPS15-58FC, UPS20-42F, UP15-42F |
| Bell & Gossett SLC Series |
SLC-25, SLC-30 |
| Weil-McLain |
511-405-118, 103253 |
❓ Frequently Asked Questions (FAQ)
Q1: Can this pump replace Grundfos UPS15-58FC?
A: Yes, the EPS15-58FC is a direct replacement for Grundfos UPS15-58FC and several other models.
Q2: Does this circulator pump include installation hardware?
A: Yes, it includes gaskets, nuts, bolts, and an optional line cord for quick installation.
Q3: Can it be used for potable water applications?
A: No, this pump is not rated for domestic potable water. It is for hydronic, radiant, solar, and fan coil systems only.
Q4: Is the pump quiet?
A: Yes, it is designed for quiet operation, making it suitable for installations where noise reduction is important.
Q5: What voltage does this pump require?
A: It operates on 115V, single phase.
