ENH-32LV ELITE Pump Less Volute for Armstrong H-32 & B&G HV Circulators
📝 Product Overview

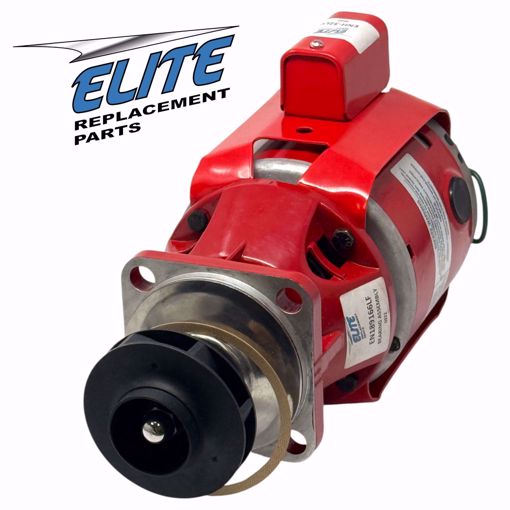

The ENH-32LV ELITE Pump Less Volute is a reliable replacement for the Armstrong H-32 (174034MF-013, 174034MF-043) and B&G HV (102210) circulators.
This assembly includes the motor and non-ferrous impeller, but does not include the volute housing. Designed with a 1/6 HP, 115V, 1725 RPM single-phase motor featuring built-in thermal overload protection, this unit ensures long-lasting performance in residential and light commercial hydronic heating systems.
💡 Quick Shopper Tips
-
Compatible with Armstrong H-32 and B&G HV circulators
-
Includes motor and impeller only – volute housing sold separately
-
Always replace flange gaskets during installation to prevent leaks
-
Check your pump model and part number for compatibility
-
Confirm voltage and HP rating: 115V, 1/6 HP
-
Ideal for hydronic heating and hot water circulation
✅ Features & Benefits
-
Direct replacement for Armstrong H-32 & B&G HV circulators
-
1/6 HP, 115V, 1725 RPM single-phase motor
-
Built-in thermal overload protection for safety
-
Non-ferrous impeller for durability and corrosion resistance
-
Easy installation with existing volute housing
-
Suitable for residential and light commercial heating systems
⚠️ Important Notes
-
This is a Pump Less Volute assembly – housing not included
-
Replace old gaskets and seals during installation
-
Not compatible with larger Armstrong or Bell & Gossett circulators outside the H-32 and HV series
- This is NOT a full circulator pump – it includes the motor & impeller only
⚙️ Used On – Compatible Pumps
| Pump Model | Description |
|---|
| 102217 |
2" BNFI Pump Bronze Body, 1/6 HP Single Phase |
| 102213 |
HV BNFI Pump Bronze Body, 1/6 HP Single Phase |
| 102214 |
2" NFI Pump, 1/6 HP Single Phase |
| 102210 |
HV NFI Pump, 1/6 HP Single Phase |
| 174034MF-013 |
Armstrong H-32 Pump |
| 174034MF-043 |
Armstrong H-32 Pump |
📊 Technical Specifications
| Specification | Details |
|---|
| Product Type |
Pump Less Volute Assembly (motor + impeller only) |
| Compatible Pumps |
Armstrong H-32 (174034MF-013, 174034MF-043), B&G HV (102210) |
| Motor Horsepower |
1/6 HP |
| Voltage |
115V, Single Phase |
| Motor Speed |
1725 RPM |
| Protection |
Built-in Thermal Overload Protection |
| Impeller Type |
Non-Ferrous (corrosion resistant) |
| Includes |
Motor & Impeller |
| Not Included |
Volute Housing, Flange Gaskets |
| Application |
Hydronic heating & hot water circulation systems |
❓ Frequently Asked Questions
Q: Does this kit include the volute housing?
A: No, this is a Pump Less Volute assembly. It includes the motor and impeller but reuses your existing volute housing.
Q: Can this replace all B&G HV circulators?
A: It is specifically designed for B&G HV 102210 models. Verify your part number before purchase.
Q: Do I need new gaskets?
A: Yes, it’s strongly recommended to replace the flange gaskets during installation to ensure a proper seal.
Q: Does it have overload protection?
A: Yes, the motor includes a built-in thermal overload protector.
Q: Do I need to buy new gaskets?
A: Yes, flange gaskets are not included and should always be replaced.
Q: What symptoms mean I need this replacement?
A: Signs include noisy motor, overheating, weak circulation, or pump failure to start.
🚨 Common Symptoms of a Worn-Out Pump Motor
-
Excessive noise or vibration during operation
-
Motor fails to start or overheats frequently
-
Reduced water circulation in the heating system
-
Evidence of leaks around the housing
-
Burning smell from motor (sign of electrical or thermal failure)
