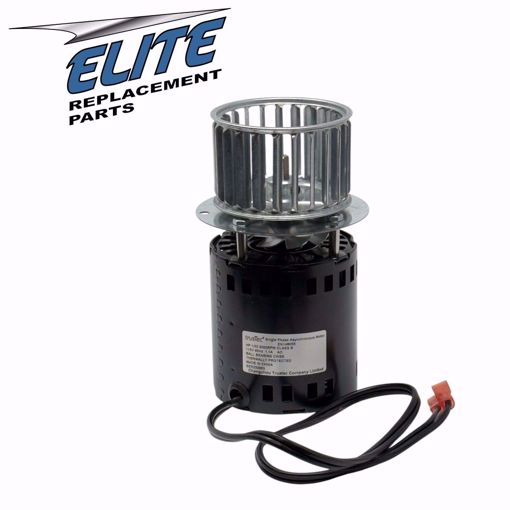

🔥 EN97727 ELITE Replacement Inducer Motor with Blower Wheel – Replaces Reznor 97727
The Elite EN97727 Vent/Inducer Motor Assembly is a direct replacement for Reznor part 97727 (also replaces 97738, 148055, and Magnetek JA1M213N).
This complete kit includes the motor, motor plate, and blower wheel, making installation fast and hassle-free. Built for durability and reliable vent/inducer performance, the 115V, 1/33 HP motor runs at 3000 RPM, making it ideal for FE and BE Series Reznor unit heaters.
🔧 Key Features
-
✅ Direct replacement for Reznor 97727, 97738, 148055, Magnetek JA1M213N
-
✅ Includes motor, motor plate, and blower wheel
-
✅ Voltage: 115V
-
✅ Horsepower: 1/33 HP (replaces some 1/30 HP applications)
-
✅ Speed: 3000 RPM
-
✅ Designed for dependable inducer/vent performance
⚙️ Technical Specifications
| Spec | Detail |
|---|
| Model |
EN97727 |
| Replaces |
Reznor 97727, 97738, 148055, Magnetek JA1M213N |
| Voltage |
115V |
| Horsepower |
1/33 HP (works in place of 1/30 HP) |
| Speed |
3000 RPM |
| Includes |
Motor + Motor Plate + Blower Wheel |
| Application |
Inducer / Vent Motor Assembly |
| Compatible Reznor Models |
FE-25, FE-50, FE-75, FE-100
BE-25, BE-50, BE-75, BE-100 |
🛠️ Common Symptoms
-
Heater won’t start due to a seized or failing inducer motor.
-
Loud rattling or grinding noises caused by a worn blower wheel.
-
Reduced airflow leading to burner shutdowns or safety lockouts.
-
Cracked or damaged blower wheel that can’t be reused.
-
When a complete drop-in kit is needed (motor + wheel together).
🔄 Cross Reference / Replaces
| Manufacturer | Part Number |
|---|
| Reznor |
97727 |
| Reznor |
97738 |
| Reznor |
148055 |
| Magnetek |
JA1M213N |
🔎 ELITE Inducer Motor Comparison Chart
| Feature / Spec | EN148055 | EN97727 | EN131986 |
|---|
| Direct Replacement For |
Reznor 148055, Magnetek JA1M213N |
Reznor 97727, 97738, 148055, Magnetek JA1M213N |
Reznor 131986, 97738, Magnetek JA1M213N |
| Includes |
Motor + Motor Plate |
Motor + Motor Plate + Blower Wheel |
Motor + Motor Plate + Fan Blade + Blower Wheel |
| Voltage |
115V |
115V |
115V |
| Horsepower |
1/33 HP |
1/33 HP (replaces 1/30 HP) |
1/33 HP |
| Speed |
3300 RPM |
3000 RPM |
3300 RPM |
| Compatible Models |
FE-25 → FE-125 / BE-25 → BE-125 |
FE-25 → FE-100 / BE-25 → BE-100 |
FE-125 / BE-125 |
| Best Choice If… |
You need a basic motor replacement with mounting plate only. |
You want a drop-in kit with blower wheel included. |
You need a complete kit (motor + blower wheel + fan blade) for larger units. |
✅ Shopper Guidance
-
EN148055 → Best for standard replacements when your blower wheel is still usable.
-
EN97727 → Complete kit with blower wheel for quick, no-hassle installs.
-
EN131986 → Full assembly for larger FE/BE-125 units or when fan blade + wheel are worn.
❓ Frequently Asked Questions (FAQ)
Q: What motor replaces Reznor 97727?
A: The Elite EN97727 is the direct replacement and comes with motor, plate, and blower wheel.
Q: Which Reznor heaters use the EN97727?
A: Works on FE and BE Series heaters: FE-25, FE-50, FE-75, FE-100 / BE-25, BE-50, BE-75, BE-100.
Q: What’s included in this kit?
A: Motor, motor plate, and blower wheel — everything needed for a full swap.
Q: Can this replace Reznor 148055?
A: Yes, the EN97727 also replaces 148055 and Magnetek JA1M213N.
