EN60020 ELITE 1/2 INCH NPT FULL BORE CHECK VALVE FOR OIL

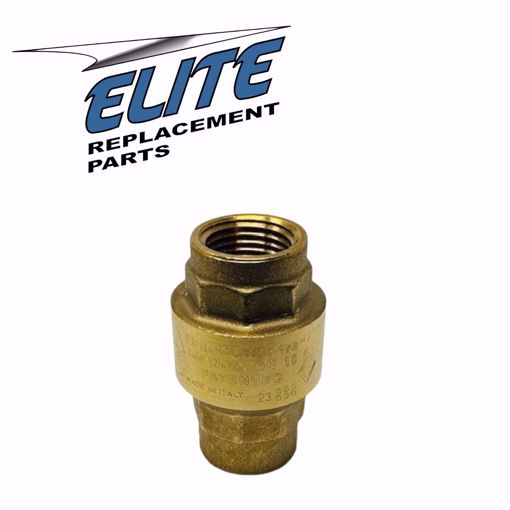

EN60020 ELITE 1/2 INCH NPT Full Bore Check Valve for Oil

Ensure reliable, leak-free performance in your oil or biofuel system with the EN60020 ELITE Full Bore Check Valve. This 1/2" NPT valve handles up to 400 PSI WOG and features a Viton check valve, offering chemical resistance for oil and bio fuels. The spring-loaded soft seat guarantees bubble-tight shutoff, while the patented disc design prevents side loading, ensuring consistent performance under all conditions. Ideal for industrial, commercial, or residential oil systems.

⚡ Replaces: Valstop H141, Combu 60020, Reznor 110320

🔥 Key Features

✅ Full Bore Design – Maximizes flow while minimizing head loss.
✅ Viton Check Valve – Chemical-resistant for oil & bio fuels.
✅ Bubble-Tight Shutoff – Soft seat and spring-loaded design for reliable sealing.
✅ Durable Construction – High-tech materials for long-lasting performance.
✅ Patented Disc Design – Prevents side loading for consistent operation.
✅ Female/Female NPT Connection – Easy integration into existing piping.
✅ Wide Temperature Range – Operates from +10° to 210°F.

💻 Technical Specifications

📊 ELITE Full Bore Check Valve Quick Reference Chart – Oil & Bio Fuels

✅ Chart Notes / Buyer Guidance

• All valves feature Viton check valve material, suitable for oil and bio fuels.

• Soft seat and spring-loaded design ensures bubble-tight shutoff with minimal cracking pressure.

• Patented disc design prevents side loading for reliable, long-term performance.

• Not for use with drinking water; suitable for industrial and commercial oil systems.

• Flow patterns are optimized to minimize head loss, ensuring efficient system operation.

⚡ Common Symptoms / Issues Indicating Replacement Needed

• Oil or biofuel backflow causing pressure drop in the system.

• Leaks around check valve connections or body.

• Erratic or inconsistent pressure readings despite normal system operation.

• Valve sticking or slow response, preventing bubble-tight shutoff.

• Wear or cracking in the Viton check valve or soft seat.

• Excessive head loss due to damaged internal components.

❓ Frequently Asked Questions (FAQ)

Q1: Can this valve be used with drinking water?
A: No — the EN60020 ELITE Check Valve is not suitable for drinking water. It is designed for oil and biofuels only.

Q2: What is the maximum operating pressure?
A: This valve operates safely up to 400 PSI WOG.

Q3: What is the operating temperature range?
A: The EN60020 can handle temperatures from +10° to 210°F.

Q4: What makes this valve “full bore”?
A: A full bore design allows unrestricted flow through the valve, reducing head loss and improving system efficiency.

Q5: What type of check valve material is used?
A: The valve uses a Viton check valve, which is chemical-resistant and ideal for oil and biofuels.

Q6: How does the valve prevent backflow?
A: The soft seat and spring-loaded design provide a bubble-tight shutoff, while the patented disc prevents side loading for consistent operation.

Q7: Can multiple valves be installed in one system?
A: Yes — installing multiple check valves can enhance system safety and prevent backflow in complex piping configurations.

Q8: What valves does this replace?
A: The EN60020 replaces Valstop H141, Combu 60020, and Reznor 110320, making it a direct-fit alternative for those systems.

Q9: Is installation difficult?
A: No — it features a female/female NPT connection, making it easy to integrate into existing piping systems.
