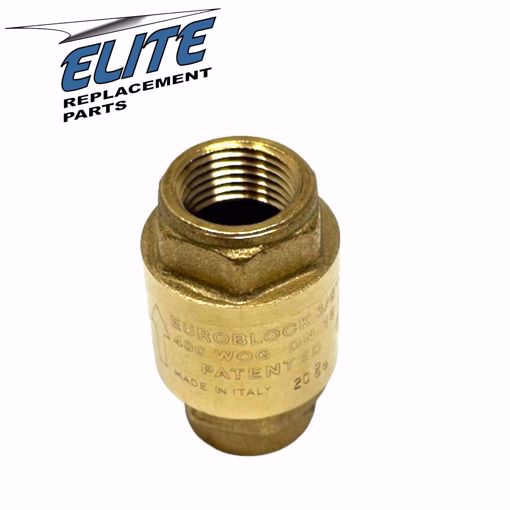

EN60010 ELITE 3/8" NPT Full Bore Check Valve for Oil & Bio Fuels
Ensure reliable flow control in your oil or biofuel system with the EN60010 ELITE 3/8" NPT Full Bore Check Valve. Designed for industrial and commercial applications, this valve features a Viton check for superior chemical resistance, a soft seat for bubble-tight shutoff, and a spring-loaded mechanism for fast, efficient sealing. Its durable construction guarantees performance under a wide temperature range, making it ideal for high-pressure oil systems.
⚡ Replaces: Valstop H141, Combu 60010
Key Features
✅ Viton check valve – compatible with oil and biofuels
✅ Soft seat for bubble-tight shutoff
✅ Spring-loaded for fast seating action
✅ Low cracking pressure: 1/2 PSI
✅ Optimized flow pattern to minimize head loss
✅ Reliable sealing across +10° to 210°F
✅ Patented disc design prevents side loading
✅ Female/Female connection
❌ Not for drinking water
Technical Specifications
| Feature | Details |
|---|
| Part Number |
EN60010 |
| Size (NPT) |
3/8" |
| Max Pressure |
400 PSI WOG |
| Check Valve Material |
Viton |
| Cracking Pressure |
1/2 PSI |
| Temperature Range |
+10° to 210°F |
| Flow Features |
Soft seat, spring loaded, bubble-tight shutoff |
| Connection Type |
Female/Female |
| Media Compatibility |
Oil & bio fuels |
| Notes |
Not for drinking water |
📊 ELITE Full Bore Check Valve Quick Reference Chart – Oil & Bio Fuels
| Part Number | Size (NPT) | Max Pressure | Check Valve Material | Cracking Pressure | Temperature Range | Flow Features | Connection Type | Replaces / Cross Reference | Notes |
|---|
| EN60010 |
3/8" |
400 PSI WOG |
Viton |
1/2 PSI |
+10° to 210°F |
Soft seat, spring loaded, bubble-tight shutoff |
Female/Female |
Valstop H141, Combu 60010 |
Oil & bio fuels, not for drinking water |
| EN60020 |
1/2" |
400 PSI WOG |
Viton |
1/2 PSI |
+10° to 210°F |
Soft seat, spring loaded, bubble-tight shutoff |
Female/Female |
Valstop H141, Combu 60020, Reznor 110320 |
Oil & bio fuels, not for drinking water |
| EN60030 |
3/4" |
400 PSI WOG |
Viton |
1/2 PSI |
+10° to 210°F |
Soft seat, spring loaded, bubble-tight shutoff |
Female/Female |
Valstop H141, Combu 60030 |
Oil & bio fuels, not for drinking water |
⚡ Chart Notes / Buyer Guidance
-
All valves feature Viton check valve material, suitable for oil and bio fuels.
-
Soft seat and spring-loaded design ensures bubble-tight shutoff with minimal cracking pressure.
-
Patented disc design prevents side loading for reliable long-term performance.
-
Not for use with drinking water; suitable for industrial and commercial oil systems.
-
Flow patterns are optimized to minimize head loss, ensuring efficient system operation.
⚡ Common Symptoms Solved
-
Oil system backflow or leakage
-
Inefficient sealing causing pressure loss
-
Valve failure under high temperature or pressure
-
Side loading damaging system components
❓ Frequently Asked Questions (FAQ)
Q1: Can this valve be used with biofuels?
A: Yes — the Viton check valve is compatible with oil and biofuel.
Q2: What is the maximum pressure rating?
A: 400 PSI WOG.
Q3: What temperature range is supported?
A: +10° to 210°F.
Q4: Is this valve suitable for drinking water?
A: No — it is not for use in potable water systems.
Q5: What valves does this replace?
A: Valstop H141 and Combu 60010.
Q6: What is the cracking pressure of this check valve?
A: The cracking pressure is 1/2 PSI, ensuring fast and responsive operation.
Q7: What is the connection type?
A: It features female/female NPT connections for easy installation.
🛒 Shopping Tips / Buyer Guidance
✅ Confirm system pressure is within 400 PSI WOG
✅ Check media compatibility — oil and biofuels only
✅ Verify connection type — female/female NPT
✅ Inspect valve for wear periodically
✅ Follow optimized flow direction to minimize head loss
