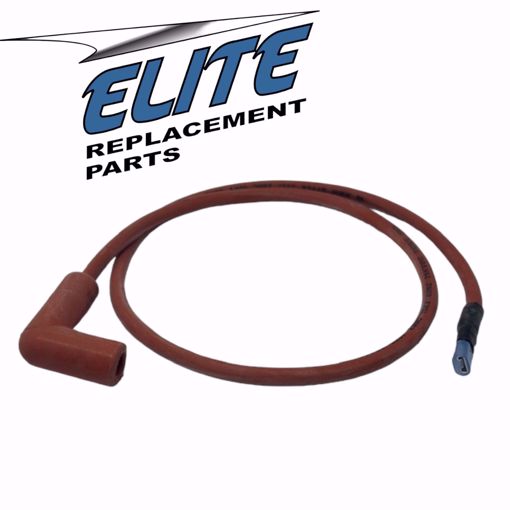

EN394800-30 Elite 30" Ignition Cable – Replacement for Honeywell 394800-30
The EN394800-30 Elite Ignition Cable is a premium aftermarket replacement designed for Honeywell ignition systems. At 30 inches long, this cable delivers reliable spark transfer with heavy-duty insulation that resists heat, arcing, and breakdown — ensuring safe, consistent ignition in furnaces, boilers, and burners.
✅ Key Features
✔️ Direct replacement for Honeywell 394800-30
✔️ 30-inch high-temperature rated cable for flexible installation
✔️ High-dielectric strength insulation prevents arcing & sparking
✔️ Built for long service life in demanding environments
✔️ Reliable ignition performance for burners, boilers, & furnaces
📊 Technical Specifications
| Feature | Details |
|---|
| Product Code |
EN394800-30 |
| Length |
30 Inches |
| Connector Type |
Standard Ignition Terminals |
| Application |
Burners, Boilers, Furnaces – Ignition Systems |
| Insulation |
High-Dielectric, Heat-Resistant |
🔁 Cross Reference / Replaces
| Manufacturer | Part Number(s) | Notes |
|---|
| Honeywell |
394800-30 |
OEM Equivalent |
| Honeywell |
394800-36 |
Shorter Version |
| Westwood |
E64-Series |
Standard Ignition Cables |
| General OEM |
Short-lead ignition wires |
With standard terminals |
⚠️ Common Symptoms of a Failing Ignition Cable
-
Intermittent ignition failures or delayed burner startup
-
Visible cracks, burns, or wear in cable insulation
-
Arcing or sparking near cable connection points
-
Burner lockouts or repeated cycling
-
Weak ignition spark or unstable flame
Replacing with the EN394800-30 Elite Ignition Cable restores ignition reliability and prevents costly downtime.
❓ Frequently Asked Questions (FAQ)
Q: Is the EN394800-30 a direct replacement for Honeywell ignition cables?
✅ Yes, it’s engineered as a direct aftermarket replacement for Honeywell 394800-30, ensuring proper fit and performance.
Q: Can I use this cable on furnaces, boilers, and burners?
✅ Absolutely. It’s designed for residential, commercial, and industrial heating systems that use Honeywell-style ignition cables.
Q: What if I need a longer ignition cable than 30"?
✅ The EN394800 Series includes multiple lengths, such as EN394800-2.1M and EN394800-2.2M, for extended reach applications.
Q: Does the insulation really hold up in high-heat environments?
✅ Yes. It features high-dielectric, heat-resistant insulation that prevents breakdown even under demanding burner conditions.
Q: How do I know when to replace my ignition cable?
✅ If you notice ignition delays, arcing near the cable, frequent lockouts, or visible insulation wear, replacement is recommended.
⚡ Honeywell Ignition Cables — Elite Series
| Feature / Spec | EN392125-2 – Ignition Cable | EN394800-2.1M – Ignition Cable (Right-Angle Boot) | EN394800-2.2M – Ignition Cable (Right-Angle Boot) | EN394800-30 – Ignition Cable | ENE63-10 – Ignition Wire Roll |
|---|
| Primary Function |
Compact ignition cable |
Long-reach ignition cable with right-angle boot |
Extra-long ignition cable with right-angle boot |
Standard ignition replacement |
Bulk/custom ignition wire |
| Application |
Honeywell ignition systems |
Honeywell systems needing angled, tight-fit installs |
Honeywell systems needing angled, tight-fit installs |
Honeywell ignition systems |
Service techs & contractors – cut to length |
| Length |
36" (3 ft / 0.91 m) |
2.1 m (6.9 ft / 83") |
2.2 m (7.2 ft / 87") |
30" (2.5 ft / 0.76 m) |
10 ft (3.05 m) Roll |
| Wire Type |
High-dielectric ignition wire |
High-dielectric ignition wire |
High-dielectric ignition wire |
High-dielectric ignition wire |
Flexible high-temp ignition wire |
| Voltage Rating |
High-voltage rated |
High-voltage rated |
High-voltage rated |
High-voltage rated |
High-voltage rated |
| Connectors |
Factory-terminated ends |
Factory-terminated ends + Right-Angle Boot |
Factory-terminated ends + Right-Angle Boot |
Factory-terminated ends |
None – cut & terminate |
| Color |
🔴 Red |
🔴 Red |
🔴 Red |
🔴 Red |
🔴 Red |
| Replaces / Cross Ref |
Honeywell 392125-2 / Westwood E64-5 |
Honeywell 394800-2.1M |
Honeywell 394800-2.2M |
Honeywell 394800-30 / 394800-36 / Westwood E64 |
General replacement wire |
| Best For |
Standard Honeywell installs |
Tight spaces / angled burner connections |
Tight spaces / angled burner connections with more reach |
Standard Honeywell replacements |
Bulk/custom jobs |
✅ Rule of Thumb:
-
EN392125-2 (3 ft) → Compact, standard installs.
-
EN394800-2.1M (6.9 ft) → Longer installs with tight space/angled boot fit.
-
EN394800-2.2M (7.2 ft) → Extra-long installs with angled boot where reach is critical.
-
EN394800-30 (2.5 ft) → Standard-length Honeywell replacement.
-
ENE63-10 (10 ft roll) → Bulk red ignition wire for cut-to-length custom/service jobs.
