EN189166LF ELITE BEARING ASSEMBLY WITH IMPELLER REPLACES 189166LF & 189165LF

Manufacturer: Elite Replacement Parts

Elite Replacement Parts EN189166LF Bearing Assembly With Impeller and Coupling

SKU: ELITE:EN189166LF

Product Availability: 3

$375.00

This product must be purchased in increments of 1

Qty:

i h

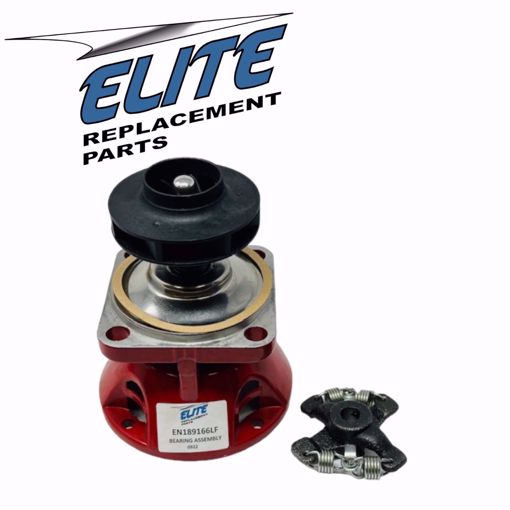

EN189166LF Elite Bearing Assembly Kit

(With Impeller & Coupling – Replaces Bell & Gossett 189166LF & 189165LF)

The EN189166LF Elite Bearing Assembly Kit is a complete, lead-free replacement for the Bell & Gossett 189166LF bearing assembly. This premium kit includes the EN189128LF impeller and EN118723 heavy-duty coupling, ensuring OEM-level performance and extended service life.

Built to be maintenance-free, the EN189166LF eliminates the need for oiling while restoring circulation efficiency in Series HV and Series 2" booster pumps. Fully Safe Drinking Water Act compliant, this assembly is suitable for both commercial and residential potable water systems.

✅ Key Features

✔️ Direct replacement for Bell & Gossett 189166LF & 189165LF
✔️ Complete kit with impeller (EN189128LF) & heavy-duty coupling (EN118723)
✔️ Maintenance-free sealed design – no oiling required
✔️ Lead Free / Low Lead compliant – Safe Drinking Water Act approved
✔️ Compatible with Series HV and Series 2" booster pumps
✔️ Built for cast iron and bronze pump bodies

📊 Technical Specifications

Specification	Details
Product Code	EN189166LF
Equivalent Parts	Bell & Gossett® 189166LF, 189165LF
Includes	EN189128LF Impeller + EN118723 Heavy-Duty Coupling
Cross References	B&G 189120, 189128, 189136, 189165, 189166
Compliance	Lead Free / Safe Drinking Water Act
Application	Series HV & Series 2" Booster Pumps
Design	Maintenance-free bearing assembly
Material Compatibility	Cast Iron & Bronze Pump Models

🔧 Compatible Pump Models

Pump Model	Description
102217	2" BNFI Pump, Bronze Body, 1/6 HP, Single Phase
102213	HV BNFI Pump, Bronze Body, 1/6 HP, Single Phase
102214	2" NFI Pump, 1/6 HP, Single Phase
102210	HV NFI Pump, 1/6 HP, Single Phase

🔑 Cross Reference Chart

OEM / Supplier	Equivalent Part Numbers
Bell & Gossett	189120, 189128, 189136, 189165, 189166

⚠️ Common Symptoms of a Worn Bearing Assembly

Loud grinding, rattling, or whining noises from the pump
Overheating pump motor due to excess friction
Reduced water circulation in heating/cooling zones
Frequent shutdowns or poor heating efficiency
Visible shaft wobble or oil leakage in older assemblies

Replacing with the EN189166LF complete kit restores peak performance, improves circulation efficiency, and prevents costly downtime.

📦 What’s Included

EN189166LF Elite Bearing Assembly
EN189128LF Impeller (Lead-Free)
EN118723 Heavy-Duty Coupling

❓ Frequently Asked Questions

Q: Does this replace both 189165LF and 189166LF?
A: Yes — the EN189166LF is a direct replacement for both.

Q: Is it lead-free and compliant for potable water?
A: Yes — it is Lead Free / Low Lead compliant per the Safe Drinking Water Act.

Q: Does it come with an impeller and coupling?
A: Yes — it includes both the EN189128LF impeller and the EN118723 coupling.

Q: Is this oil-lubricated?
A: No — this is a maintenance-free sealed bearing assembly, requiring no oiling.

⚙️ Elite Bearing Assembly Comparison Chart

Feature	EN186863LF	EN189134LF	EN189165LF	EN189166LF
OEM Replacement	Bell & Gossett 186863LF	Bell & Gossett 189134LF	Bell & Gossett 189165LF	Bell & Gossett 189166LF / 189165LF
Compliance	Lead-Free / Safe Drinking Water Act	Lead-Free / Safe Drinking Water Act	Lead-Free / Safe Drinking Water Act	Lead-Free / Safe Drinking Water Act
Compatible Pumps	Series 60, PD, 60 “AA”, 1522	Series 100	Series HV, Series 2", obsolete Series 1½	Series HV, Series 2"
Lubrication	Oil-lubricated	Maintenance-free (sealed)	Oil-lubricated	Maintenance-free (sealed)
Includes	Bearing assembly only	Bearing assembly + Impeller (EN189132LF) + Gasket (EN118844LF) + Coupling (118705)	Bearing assembly with pre-assembled bracket	Bearing assembly + Impeller (EN189128LF) + Coupling (EN118723)
Material Compatibility	Cast iron & bronze pumps	Cast iron & bronze pumps	Cast iron & bronze pumps	Cast iron & bronze pumps
Key Advantage	OEM-style replacement for Series 60/PD/1522	Complete drop-in kit for Series 100	Restores Series HV & 2" pumps (oil-lubricated)	Complete kit with impeller & coupling (maintenance-free)
