EN189132LF ELITE IMPELLER REPLACES BELL & GOSSETT 189132LF, 189132

Manufacturer: Elite Replacement Parts

SKU: ELITE:EN189132LF

Product Availability: 3

$26.89

This product must be purchased in increments of 1

Qty:

i h

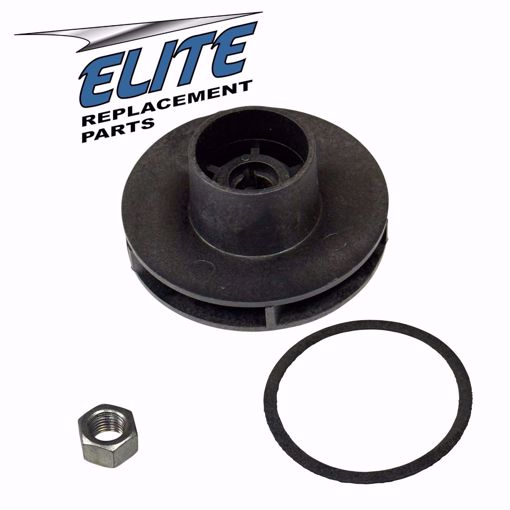

EN189132LF Elite Impeller – Replacement for Bell & Gossett 189132LF / 189132

The EN189132LF Elite Impeller is a high-quality aftermarket replacement designed for Bell & Gossett Series 100 pumps. Precision-engineered from lead-free, non-ferrous alloy, this impeller ensures compliance with the Safe Drinking Water Act while maintaining reliable performance in hydronic heating systems.

✅ Key Features

✅ Direct replacement for Bell & Gossett 189132LF / 189132
✅ Aftermarket equivalent to P-3500-S-0311-Z, P-4-Z-335, 118840
✅ Manufactured from lead-free, non-ferrous material
✅ Includes impeller, body gasket, and impeller nut
✅ Compatible with Bell & Gossett Series 100 pumps
✅ Engineered for long-lasting reliability in heating and circulator pump systems

📊 Technical Specifications

Specification	Details
Product Code	EN189132LF
Replaces OEM	B&G 189132LF, 189132, P-3500-S-0311-Z, P-4-Z-335, 118840
Material	Lead-Free Non-Ferrous Alloy
Diameter	2-3/4"
Includes	Impeller, Body Gasket, Impeller Nut
Application	Hydronic Heating / Circulator Pumps

🔧 Compatible Pump Models

Pump Model	Description
106189	Series 100 NFI Pump – 1/12 HP, Single Phase
106197	Series 100 BNFI Pump – Bronze Body, 1/12 HP, Single Phase
189134	Bearing Assembly with Impeller
189161	Bearing Assembly with Impeller
118844 / 118844LF	Used with Bearing Assemblies
189034 / 189034LF	Equivalent Bearing Assemblies (less impeller)

🔑 Cross Reference Chart

OEM / Supplier	Part Numbers
Bell & Gossett	189132LF, 189132
P-Series Equivalents	P-3500-S-0311-Z, P-4-Z-335
Legacy B&G Parts	118840

⚠️ Common Symptoms of a Worn or Failing Impeller

Reduced system circulation or weak flow
Pump motor overheating from added strain
Noisy operation (rattling, grinding, cavitation)
Visible cracks, corrosion, or worn blades
Poor heating system performance or uneven distribution

❓ Frequently Asked Questions

Q: Does the EN189132LF include a gasket?
A: Yes, it comes with a body gasket and impeller nut.

Q: Is this impeller lead-free?
A: Yes, it is made from lead-free alloy and is Safe Drinking Water Act compliant.

Q: Which Bell & Gossett pumps is this compatible with?
A: It is designed for Series 100 pumps (NFI & BNFI) and works with bearing assemblies 189134 & 189161.

📦 What’s Included

EN189132LF Impeller
Body Gasket
Impeller Nut

🔄 Elite Impeller Comparison Chart

Feature	EN189128LF	EN189132LF
OEM Replacement	Bell & Gossett 189128 / 189128LF Sid Harvey B60-11	Bell & Gossett 189132 / 189132LF P-3500-S-0311-Z, P-4-Z-335, 118840
Pump Compatibility	B&G 2" Series & HV Circulator Pumps	B&G Series 100 Pumps
Diameter	3-3/8"	2-3/4"
Material	Lead-Free, Non-Ferrous Alloy	Lead-Free, Non-Ferrous Alloy
Includes	Impeller, ENP04890 Body Gasket, Impeller Nut	Impeller, ENP04890 Body Gasket, Impeller Nut
Applications	Hydronic Heating / Circulator Pumps	Hydronic Heating / Circulator Pumps
Cross References	B&G 189128, 189128LF Sid Harvey B60-11	B&G 189132, 189132LF P-Series & Legacy Equivalents
Compatible Bearing Assemblies	189136 (obsolete), 189166, 189165	189134, 189161, 118844(LF), 189034(LF)
Common Symptoms of Failure	Weak circulation, overheating, noise, cracked blades	Weak circulation, overheating, noise, cracked blades
