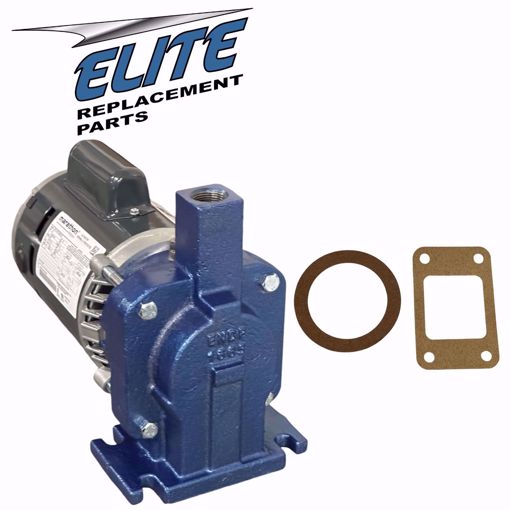

EN180001 Elite Pump & Motor Assembly – Replacement for Hoffman 180001
The EN180001 Elite Pump and Motor Assembly is a high-performance, aftermarket replacement designed to match the reliability of the Hoffman 180001. Built with a rugged 1/3 HP dual-voltage motor and tested for Hoffman compatibility, this assembly ensures efficient condensate removal and long-lasting operation.
✅ Direct replacement for Hoffman 180001
✅ Includes ENDG0092 Pump Head Gasket & ENDG0060 Receiver Gasket
✅ Dual-voltage (115/208–230V) single-phase operation
✅ Powerful 1/3 HP, 3450 RPM motor with ODP enclosure
✅ Delivers high flow rates for efficient condensate handling
📊 Specifications
| Specification | Details |
|---|
| Horsepower |
1/3 HP (.33 HP) |
| Voltage |
115/208–230V, 60 Hz, Single Phase |
| Speed |
3450 RPM |
| Motor Enclosure |
Open Drip Proof (ODP) |
| Frame |
56J |
| Service Factor (SF) |
1.75 |
| Service Factor Amps (SFA) |
8.4A / 4.4–4.2A |
| Full Load Current |
6.4A @ 115V / 3.0A @ 208V / 3.2A @ 230V |
💧 Performance Data
| Head (ft.) | Flow (GPM) |
|---|
| 30 ft. |
33 GPM |
| 35 ft. |
30 GPM |
| 40 ft. |
26 GPM |
| 45 ft. |
21 GPM |
| 50 ft. |
12 GPM |
| Maximum Head |
56 ft. |
🔄 Compatible Hoffman Models
The EN180001 is used with multiple Hoffman Watchman B-Style pump models, including:
-
30VBFS-B (161024)
-
30VBFD-B (161025)
-
50VBFS-B (161001)
-
50VBFD-B (161002)
-
100VBFS-B (161003)
-
100VBFD-B (161004)
-
WC6-20B (160029)
-
WC8-20B (160030)
-
WC12-20B (160031)
-
WCD12-20B-MA (160032)
⚠️ Common Symptoms of Pump & Motor Failure
-
Reduced flow or failure to move condensate
-
Motor overheating or tripping breakers
-
Unusual noises (grinding, whining, rattling)
-
Visible leaks at gaskets or pump housing
-
Motor fails to start or runs intermittently
If your system shows these issues, replacing the pump and motor assembly with the EN180001 can restore full performance.
❓ Frequently Asked Questions
Q: What pump replaces Hoffman 180001?
A: The EN180001 is a direct aftermarket replacement for Hoffman 180001.
Q: What gaskets are included?
A: The EN180001 comes with the ENDG0092 Pump Head Gasket and ENDG0060 Receiver Gasket.
Q: What is the maximum head and flow rate?
A: It delivers up to 56 ft. maximum head with flow rates of 33 GPM at 30 ft. and 12 GPM at 50 ft.
📦 What’s Included
-
EN180001 Pump & Motor Assembly (1/3 HP, 115/230V, 1 PH)
-
ENDG0092 Pump Head Gasket
-
ENDG0060 Receiver Gasket
